Техническая документация
Характеристики
Brand
VolkelPlug/Ring
Plug
Тип продукции
Шаблон для пробок
Тип измерительного прибора
Plug Thread
Размер резьбы
M8 x 1.25
Диаметр делительной окружности
1.25mm
Британский/метрический
Метрический
Tapered/Straight
Tapered
Gauge Tolerance
6h
Single/Double Ended
Double Ended
Стандарты/одобрения
DIN ISO 1502
Страна происхождения
Germany
Информация о товаре

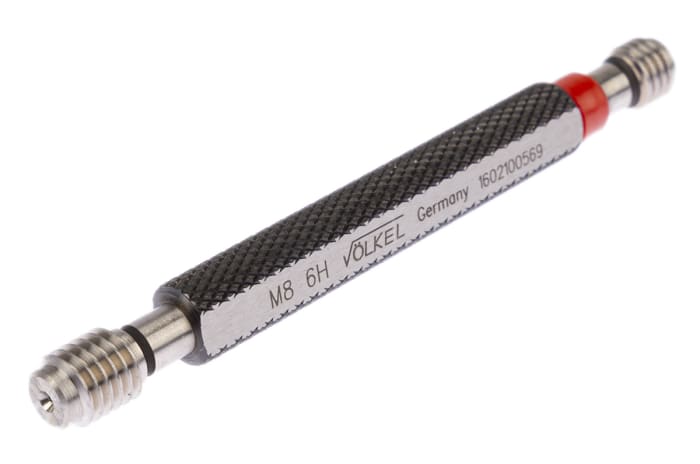

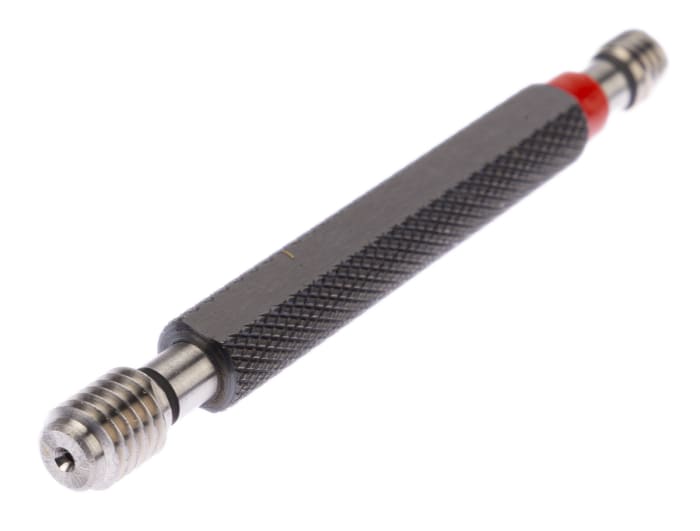

The Volkel Go No-Go plug gauge M8x1.25 is a combination of GO and NO-GO plug gauge. The scrap side of this thread plug gauge is marked with a red ring. It is calibrated at a measurement laboratory using IAC thread scanners. This gauge must screw into the part by hand more than two threads. If unable to do so, the thread does not meet the requested standards. This is calibrated at the measurement laboratory using IAC thread scanners. The reference temperature for parts and gauge is 20°C. It is made of high-quality raw material. This gauge is mostly used as an inspection tool.
Информация о наличии не успела загрузиться
P.O.A.
Calibration type
No Calibration
1
P.O.A.
Информация о наличии не успела загрузиться
Calibration type
No Calibration
1
