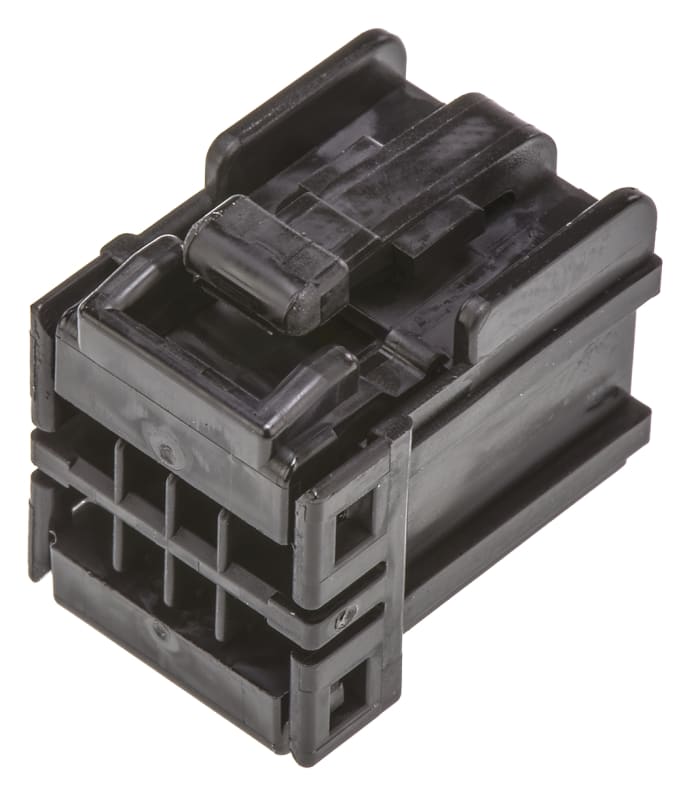

8 way Multilock 040 cable plug housing

TE Connectivity 2.5 mm MULTILOCK 040 Series Automotive Connectors

TE Connectivity brings you a brilliant range of automotive PCB connector housings. Their 'MULTILOCK 040' series have a Compact design with a high density 2.5mm, contact centre. Not to mention, they’re also highly Durable and easy to handle. The housing features pin protection from rocking action that occurs when mating & un-mating the connector. The 'MULTILOCK 040' also has a locking mechanism to ensure contact retention.

Features and benefits:

• Compact design
• Very Durable
• High density 2.5mm pitch
• Contacts protected from any rocking action
• Integral double locking system

Applications:

• TE Connectivity have designed them to be used in automotive applications, however they can be used in general purpose applications. Their typical applications are:

• Powertrain systems
• Safety and security systems
• Convince systems (AC, Radios, heated seats)
• Driver information
• Body & chassis systems

TE Connectivity MULTILOCK Connectors and Contacts

This is a miniature high density connector system offering a wire to wire and wire to board I/O solution commonly used in the automotive industry but suitable for many varying signal transfer applications.

• Snap in, crimp contacts for cable receptacles
• Board mounting options are pre-loaded with male contacts
• For wire to board connections utilise a cable and a board receptacle
• Cable cap accepts female contacts, cable plug accepts male contacts
• Cable cap mates cable plug to allow wire to wire connections
• High density wiring connectors with 2.5mm contact centres
