5kV 4mm panel socket XHB-5000 Black

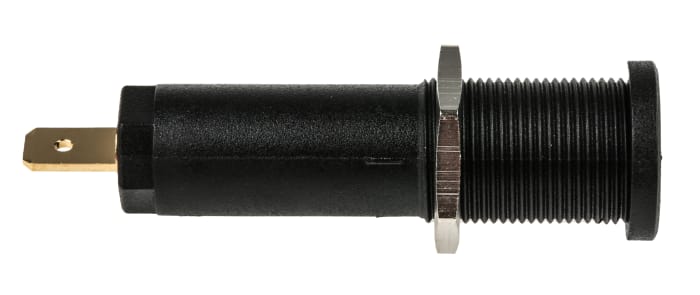

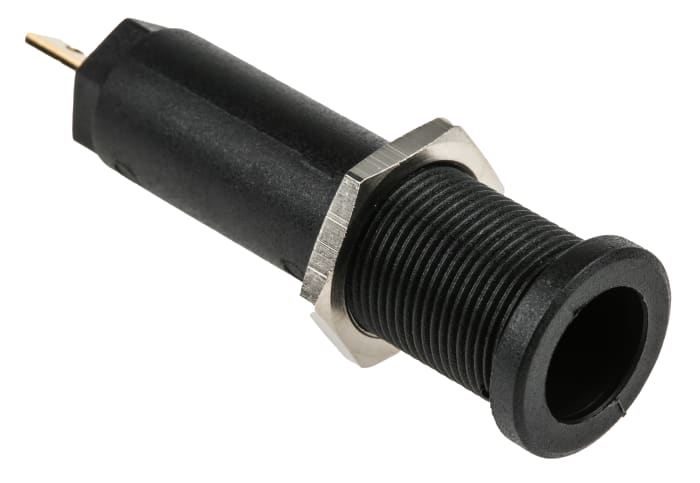

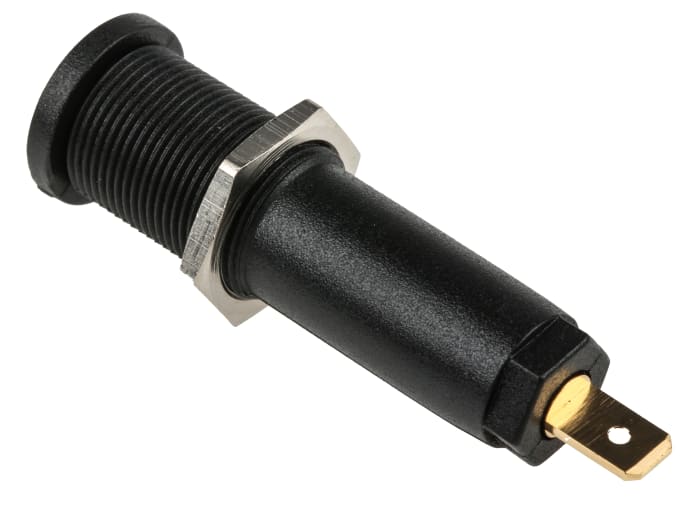

5kV Panel Socket XHB-5000

Insulated, rigid Ø 4mm socket for high voltages. Mounted by screwing in to panels or housings of plastic, metal, etc.

• Voltage rating 5kV CAT I (ie. Output voltage of Test instrument) or 1000V CAT IV to IEC/EN61010-031:2002
• Current rating 10A
• Rear termination 4.8x0.8 mm flat tab

4mm Sockets

Plugs, sockets, adaptors, probes and leads with shrouded centre contacts for use where a higher degree of safety in interconnection is required.

Notes

For safety reasons, the socket is only compatible with XHM-5000 or XHL-5000 leads.
