4mm Stackable retracatble plug red

Multi Contact Male Banana Plug

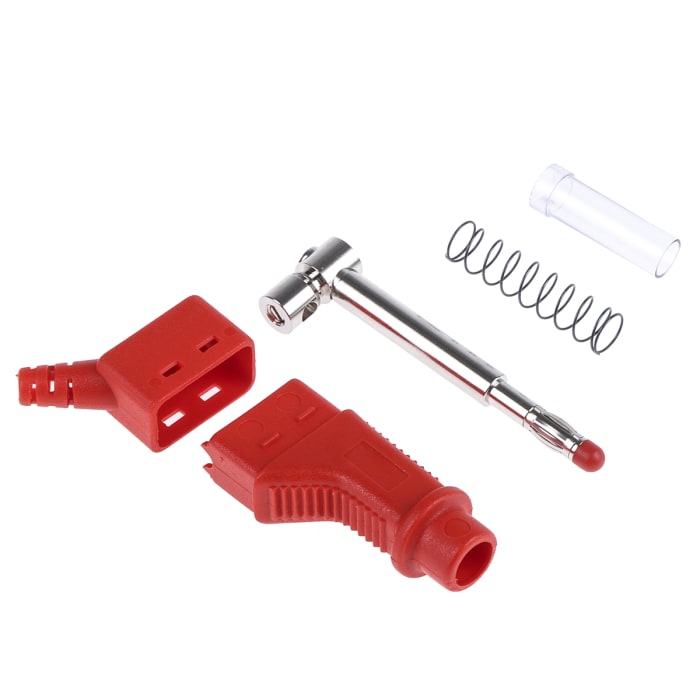

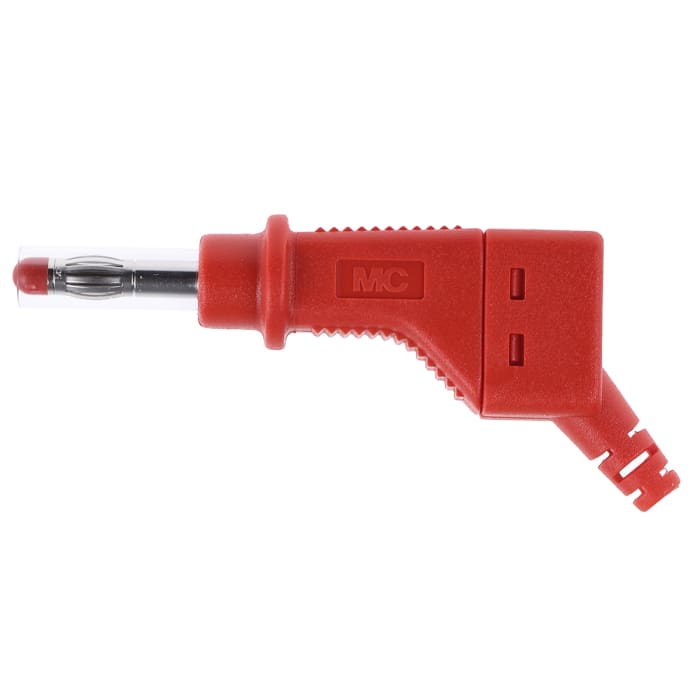

The Multi Contact red, male banana plug is a stackable, 4mm plug. It is equipped with spring-loaded Multilam for self-assembly of test leads and retractable sleeve to prevent accidental touching. It allows test leads equipped with this plug be safely connected to older test instruments because of the protective collar, the clearances and creepage distances. It has a voltage rating of 600V and a current rating of 32A.

Features and Benefits

• Screw termination
• Nickel contact plating and brass or copper alloy contact material
• Spring contact
• Length is 59mm
• Polyamide insulation material

Applications

• Automotive (car manufacturing plant equipment)
• Motorsports
• Aeronautics (plant equipment)

Certifications

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
