White shrouded stud socket,4mm

Multi Contact Socket

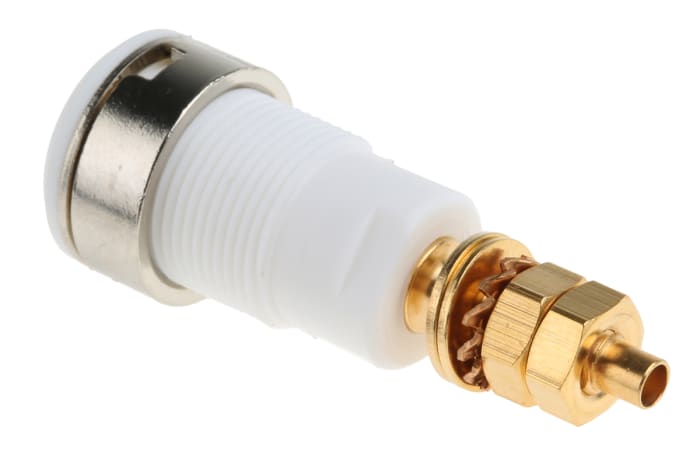

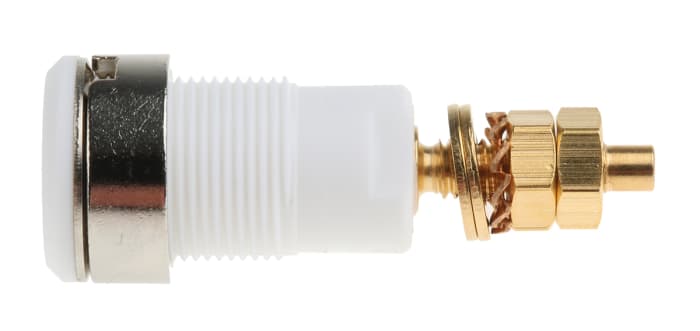

The Multi Contact white, female socket is a 4mm connector. It is equipped with spring-loaded plugs with a rigid insulating sleeve. The socket is screwed into predrilled panels of plastic, metal and more. It has a voltage rating of 1kV and current rating of 32A.

Features and Benefits

• Solder termination
• Gold contact plating and brass contact material
• Compatible with shrouded plugs and leads
• Termination style: M4'15mm stud with soldering hole
• Length is 38.5mm
• Includes nuts and washers for clamping wire or ring terminals; panel mounting hole diameter is 12mm

Applications

• Automotive (car manufacturing plant equipment)
• Motorsports
• Aeronautics (plant equipment)

Certifications

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• UL approved
