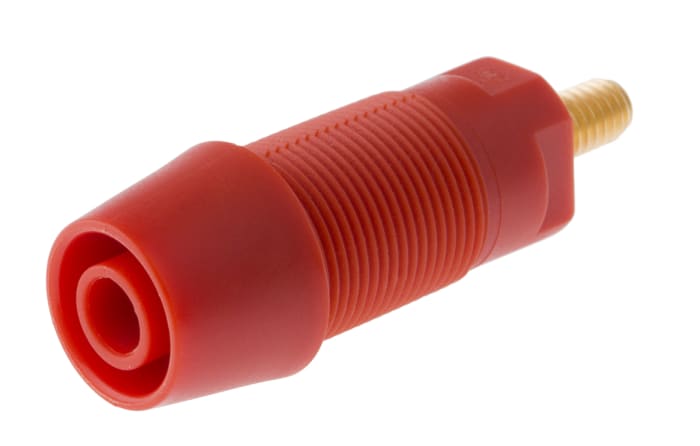

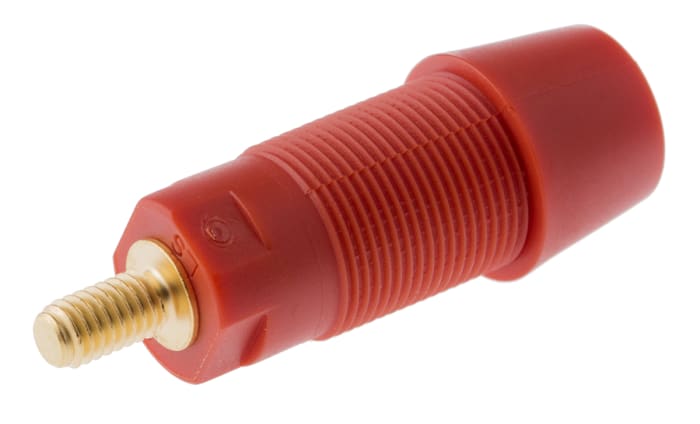

Red 4mm panel mount safety socket

Electrical Test Safety Threaded 4mm Panel Mount Connectors, SAB 6922 Series

A range of Schutzinger CAT III 4mm socket panel mount safety connectors suitable for panels up to 6mm thick, M12 threaded body with an M12x0.75 slotted nut and complete with a spring washer and a M4 terminal. These CAT III 4mm safety threaded sockets feature gold plating, rated at 32A and 1000V and suitable for temperature ranges between -25 to +80 degrees C.

• Rated at 32A 1000V
• M4 termination
• M12 threaded body
• Gold Plated
• Transition resistance 5 mΩ
• Fastening torque 45Ncm

Schutzinger 4mm Programme Range

A comprehensive range of Schutzinger Terminal posts, quick release connectors and crocodile clips suitable for many applications, including test beds, testing tools and various electronic devices utilising the 4 mm diameter programme and safety programme ranges.
