CSO;FuseClip;Solder;10.3x85mm;1500V;32A

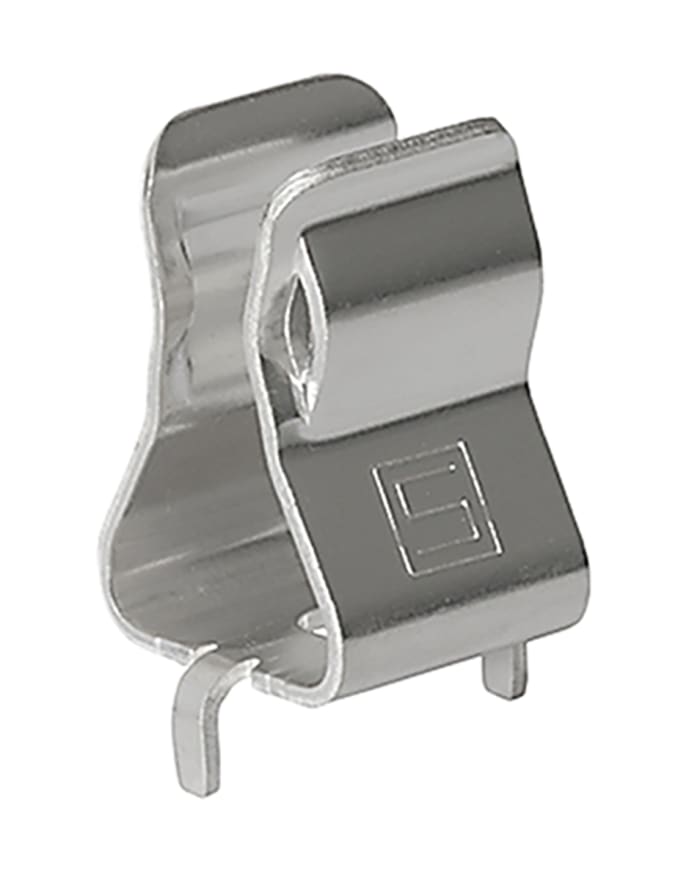

Schurter Fuse Clip

The Schurter fuse clip is a product made of CSO silver-plated copper alloy PCB mount. It has an electric rating of 1500VAC/VDC and 32A. It's designed to create a tight grip between the clip and the fuse itself and protect the fuse from the environment around it. It can be used as an alternative to fuse blocks in some cases.

Features and Benefits

• Fuse link size 10.3 x 38mm
• Heavy fuse clips offer minimal power dissipation due to high clamping force
• Operating temperature ranges between -55°C and 125°C
• Parallel legged fuse clips with straight terminals

Applications

• Used in industrial electronic
• Photovoltaic
• Applications for high currents and voltages
• Three phase supply equipment
• Inverters
• String fuse holders
• DC applications

Certifications

• UL 4248-1 listed
• CSA 22.2 no. 4248.1
• UL File Number: E39328 listed

Schurter Fuseholder Clips

Professional range of Schurter fuse clips designed for 20 and 32A applications.Heavy duty fuse clips, the fuse clips offer minimal power dissipation due to high clamping force.
Applications include:
Photovoltaic applications.
Inverters.
Battery charge contollers.
String fuse holders.
DC applications.

• Solder terminals and Screw Terminals

All fuses have Thermoplaste Polyamide bodies
