Inlet filter 3A High performance

FN9233 IEC Inlet Filter

From Schaffner the FN9233 IEC inlet filter combines an excellent IEC inlet and mains filter with excellent filter attenuation in a small form factor. Standard IEC connector filters are a practical solution helping you to pass EMI system approval in a short time. A wide selection on amperage ratings, output connections, mounting possibilities and filters for medical applications are designed to offer you the desired solution. For types with additional earth line choke please consult the FN9233E range of filters.
Can be used in a wide range of applications such as electrical & electronic equipment, household equipment, single-phase & switch-mode power supplies, test & measurement equipment, medical equipment and rack mounting equipment.

• Rated currents up to 15 A
• Excellent attenuation performance
• Complies with IEC/EN 60601-1
• Snap-in versions (S & S1 type) Hot inlet versions (HI type)
• Medical versions (B type) available

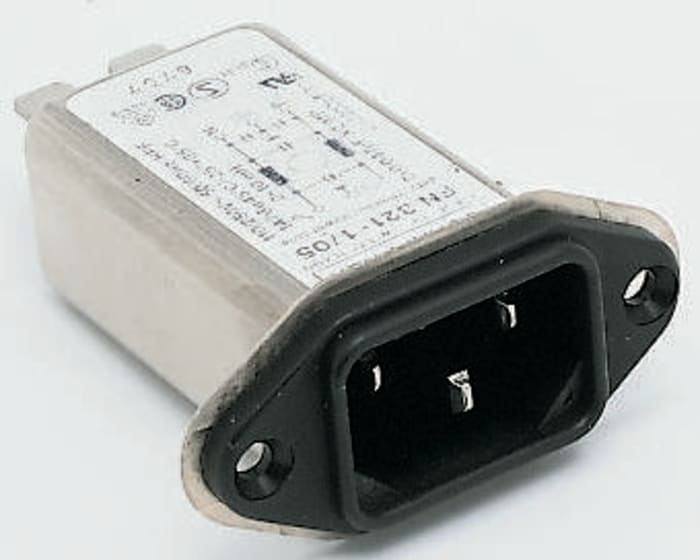

Schaffner FN92XX & FN32X Series

These high performance filters contain an additional capacitor to give a class X2 capacitor between live and neutral at both the filter input and output.

Approvals

UL 1283, CSA 22.2 No.8 1986, IEC/EN 60939
