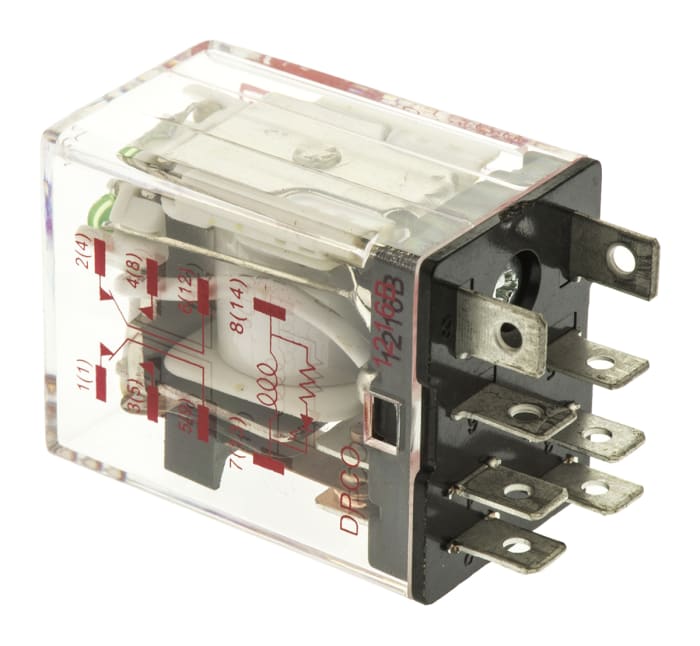

LED Indicating relay, 10A DPDT 240Vac

RS PRO Push Button General Purpose Relay (10A)

A reliable general purpose relay with a Double Pole Double Throw (DPDT) featuring the function to manually activate the relay via a push button. Perfect for field service technicians and engineers enabling the quick testing of control circuits without the need to power the coil.;The 10A general purpose relays compact design at 36 x 28 x 21.5mm makes it suitable for the use in cramped areas and the coil LED status lamp with a simple ON/OFF display is great for operation in areas with low light levels.;With a straight forward plug in design and a life span of 1000000 cycles the push button relay is an easy to use long lasting relay suitable for use in a wide range of applications.;Applications include power, control panel, sequence control, direct load switching, surge and industrial automation controllers.

Features and Benefits

• General purpose relay
• DPDT configuration
• LED power indicator
• Socket mount
• Coil voltage of 240 V ac
• Coil resistance of 15700 Ω
• Coil power of 1.2 VA
• Maximum switching current 10 A
• Maximum switching power 2400 VA/ 300W
• Maximum switching voltage 250 V ac/ 125 V dc
• Silver contacts
• Electrical life 100000 cycles

Standards and Approvals: UL E125370, CUR E125370
