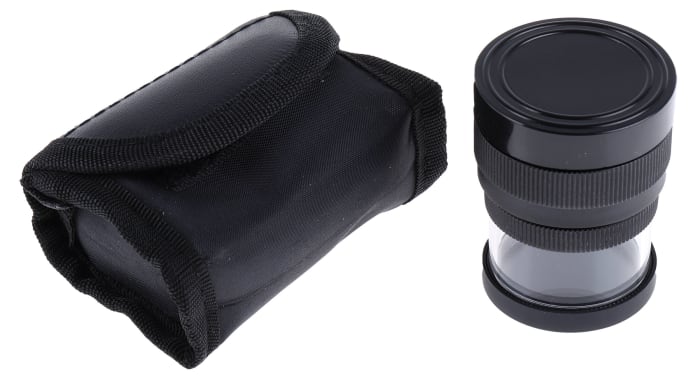

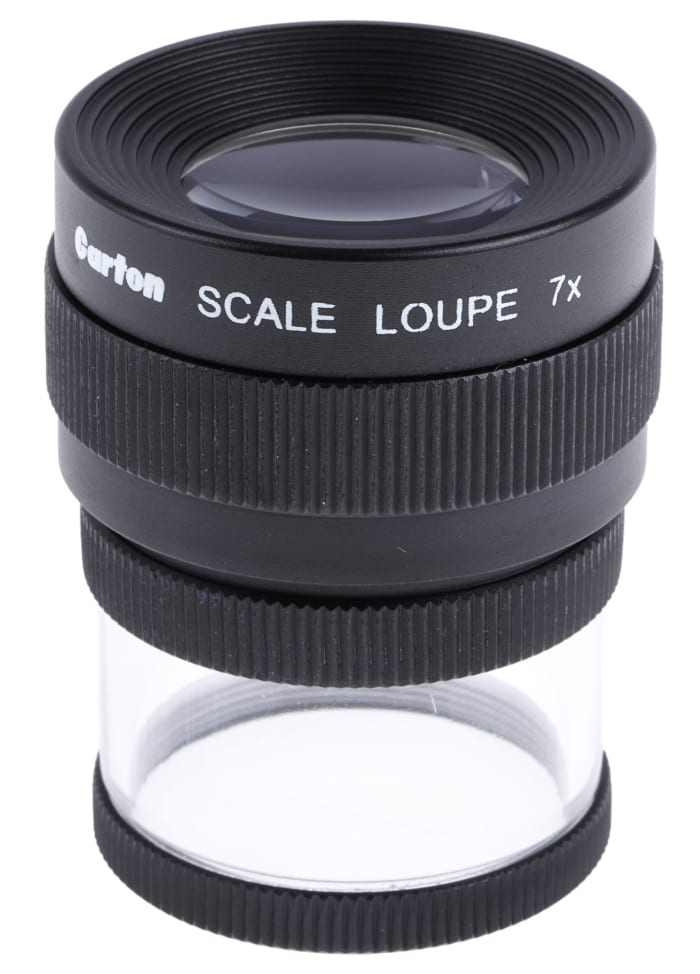

Graticule magnifier,7X

These are suitable for measurement of angles, linear dimensions, hole sizes and grid sizes depending upon the scale fitted. Each magnifier has a No. 2 scale fitted to the base of the acrylic drawtube as standard. Other scales (scales only), available separately, can be interchanged to give the required measurement, see scale No. 1 to 4 specifications.

No.1 Scale RS 200-9431
No.2 Scale RS 200-9447
No.3 Scale RS 200-9453
No.4 Scale RS 200-9469
