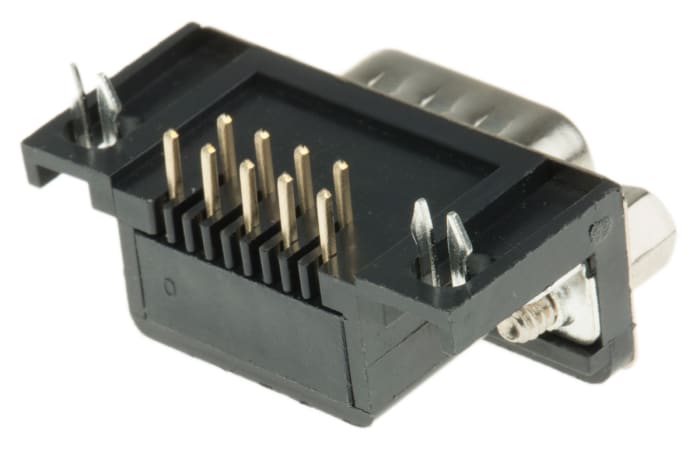

RS PRO 9 Way Right Angle Through Hole D-sub Connector Plug

This RS PRO right angle D-sub plug is a male connector plug with nine contacts. It features a housing made of thermoplastic material for added safety.
The contacts are gold plated to ensure the connection is reliable and accurate. They also have solder termination, which allows you to install and connect the plug easily. The unit has dimples on the shell for improved electrical conductivity and grounding.
You can see D-sub connector plugs like this piece generally used in military, industrial and computer applications to create power as well as communication and network port connections between various devices. Each plug is tested against electrostatic discharge (ESD) requirements and complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, so you can rest assured the risk of electrostatic discharge (ESD) is minimised.

Features and Benefits

• Right angle body orientation
• Copper alloy contact material
• Gold contact plating
• Current rating of 3 A
• Dimensions of 30.81 (length) x 20.6 (depth) mm
• Male gender
• Thermoplastic housing material
• Maximum operating temperature of +105°C
• Minimum operating temperature of -55°C
• Through-hole mounting type
• Nine contacts
• Nine poles
• Solder termination type
• Voltage rating of 350 V DC
