Double-level PTTBS 2,5-PE

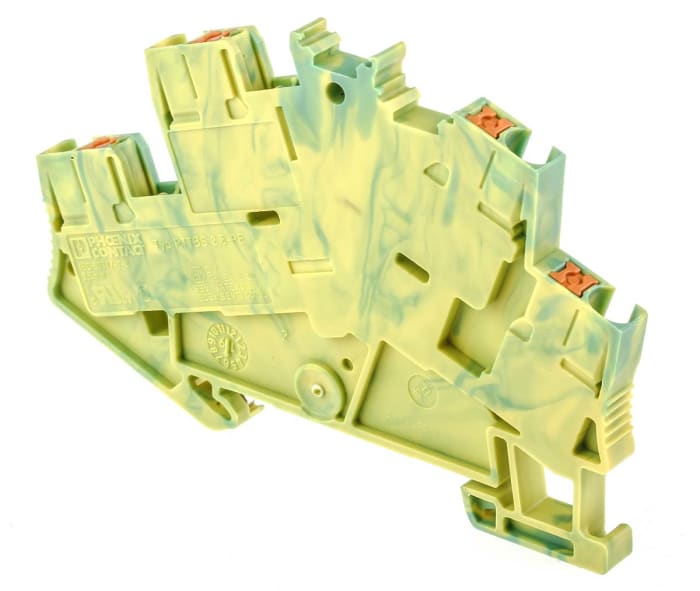

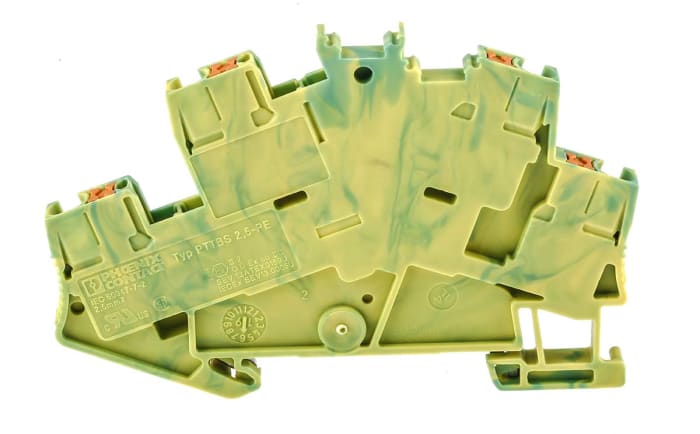

Phoenix Contact Double-Level Terminal Block, 26 to 12AWG, 0.14 to 4mm² CSA - PTTBS 2.5-PE - 3209620

Use this protective feed-through terminal block from Phoenix Contact when you need to safely and easily connect wires in a circuit. It’s ideal for use in industrial automation or the railway industry.

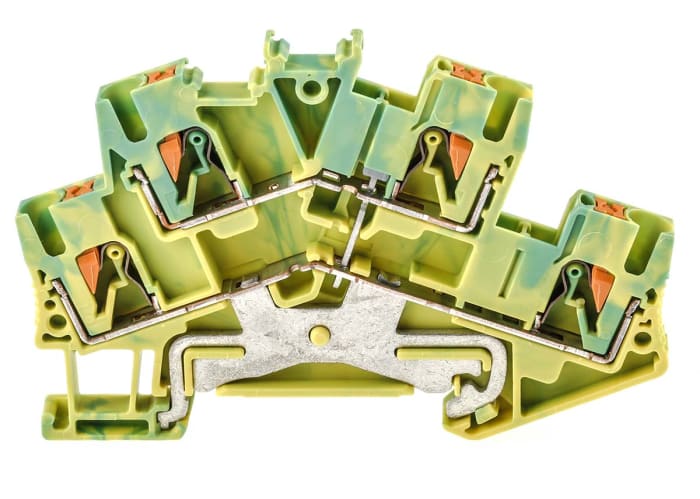

The double-level construction uses around half as much space as a single-level alternative, making this a compact option for use where space is tight. Since the two levels are offset, you have direct access to both, even when the terminal block is fully wired.
As part of Phoenix Contact’s PT series, this product uses the CLIPLINE complete system. This means it can be easily bridged together with multi-conductor and function terminals, allowing you to customise your terminal block system as needed. Thanks to a tool-free push-in connection method, wiring is quick and easy even in confined spaces.

• ATEX and IECEx certification guarantees safe use in environments with a potentially explosive atmosphere
• Plug-in connection method uses 50% less insertion force, for easy installation and reduced wear on conductors
• Flame-retardant polyamide housing offers protection from fire hazards and is also abrasion-resistant and corrosion-resistant for a long service life

Phoenix Contact Feed-Through and Multi-Conductor Terminal Blocks

The compact PT series from Phoenix Contact uses the advantages of the CLIPLINE complete system and is characterised by easy, direct conductor connection. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.

PT Series - Features and Benefits

• Can be bridged together easily with multi-conductor and function terminals
• Single, Double and triple levels available
• 50 % less insertion force
• Direct plugging from 0.34 mm²
• Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
• Actuation button can be operated with any kind of screwdriver
• Compact design and front connection facilitate wiring in the smallest of spaces
• Double bridge shaft for an individual power distribution and supply

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
