UT 4-TG

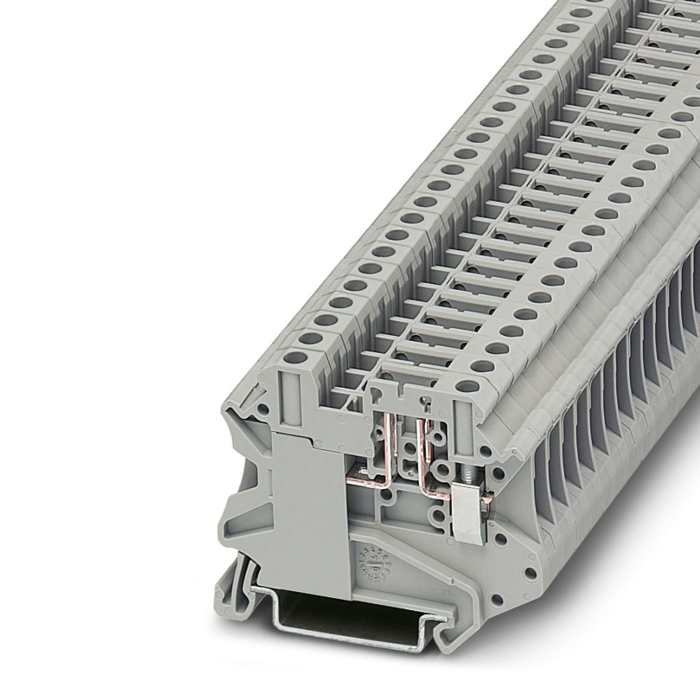

Phoenix Contact UT 4-TG Series Disconnect Terminal Block, 20A Current Rating, 500V Voltage Rating - 3046142

This disconnect terminal block is an electrical connection solution that facilitates secure and efficient wiring in industrial applications. Featuring a screw connection, it accommodates cable cross-sections from 0.14 mm² to 6 mm², making it versatile for various installations. Its compact dimensions of 57.8mm in length and 6.2mm in width provide an efficient use of space within control cabinets and panels.

Features & Benefits

• Designed for secure screw termination ensuring reliable connections
• Rated for a maximum current of 20A, accommodating high power applications
• Operates effectively within a voltage range of up to 500V
• Complies with CSA, EAC, and cULus standards for international safety
• Maintains operation in extreme temperatures from -60°C to +110°C
• Suitable for use with both solid and stranded conductors, supporting AWG 26 to 10

Applications

• Used in automation solutions for reliable electrical connections
• Ideal for control panel assembly in industrial machinery
• Suitable for wiring in electronic devices and equipment
• Utilised in railway and transportation systems requiring sturdy connections
• Effective in renewable energy installations including solar and wind systems

What specific conductor cross-sections can be used with this terminal block?

It accommodates solid or stranded conductors ranging from 0.14 mm² to 6 mm² and supports AWG sizes from 26 to 10, allowing flexibility in various applications.

How does this terminal block ensure safety and reliability in operation?

The terminal block meets rigorous safety standards including CSA and cULus certifications, ensuring reliability in diverse environments. It also features robust thermal and mechanical stability tests that guarantee consistent performance.

Can this terminal block be used in extreme environmental conditions?

Yes, it performs reliably within a temperature range of -60°C to +110°C, making it suitable for challenging conditions often found in industrial settings.

What termination method is supported by this terminal block, and what advantages does it offer?

It supports screw termination, which provides a secure connection that is easy to install and maintain, ensuring longevity and stability throughout its service life.

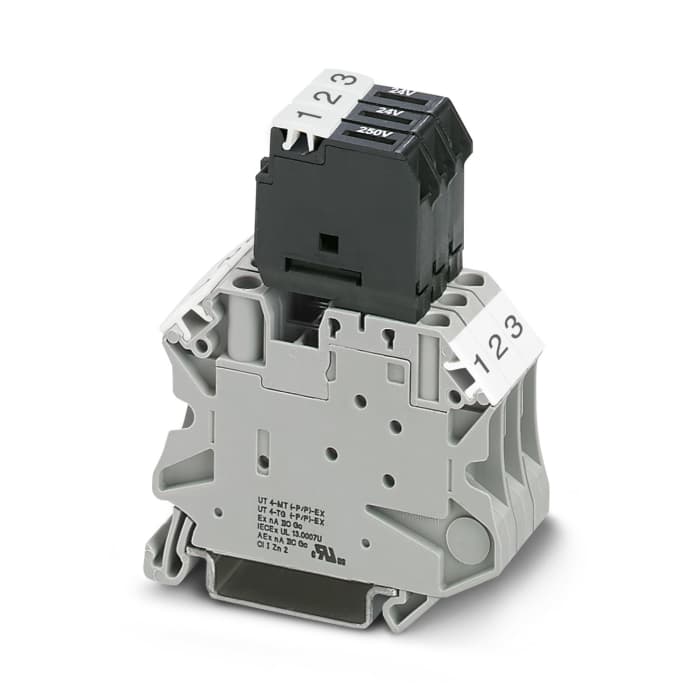

Disconnect terminal UT 4-MT/ UT 4-TG

• The knife disconnect terminal MT is characterised by a compact design and high current capacity
• Basic TG terminal is for isolating plugs, assembly element plugs and contactor plugs
• Fire protection rating in accordance with UL 94 V0
• Version P/P with test socket screws

Phoenix Contact CLIPLINE UT Range

Standards

IEC 60947-7-1

Approvals

UL, CSA
