Mini inverted plugin connector,3.81mm,2w

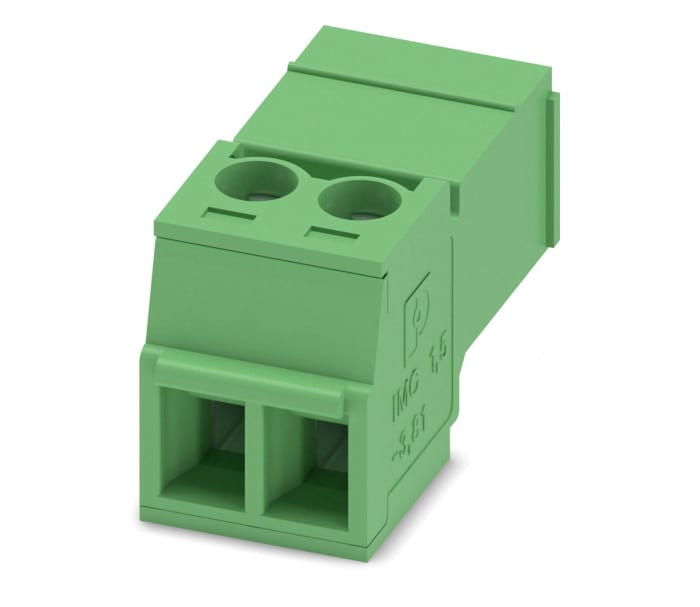

Phoenix Contact Pluggable Terminal Block, 8A Current Rating, 320V Voltage Rating - IMC 1,5/ 2-ST-3,81 - 1857883

Create a connection point for wires on your PCB with this Phoenix Contact pluggable Terminal block. The single-row electrical connector has two 3.81mm pitch pins and offers a simple solution for attaching 28 to 16AWG leads and contacts.
Screw termination firmly secures the Block to your PCB and achieves reliable connections. A robust polyamide housing protects the contacts from external damage and also insulates live elements to help prevent electric shocks and improve safety.
This lightweight device weighs just 1.9g so it won't put a strain on your PCB. It's also compact, with dimensions of 8.41 (length) x 17.9 (width) x 11.1mm (depth), to save space in busy setups. For more complex systems, you can link the modular unit to other Terminal blocks from the same series.

• UL94V-0 rating means the unit stops burning in 10 seconds after catching fire without any flaming drips
• CUL and UL certification assures you the product passed quality and safety tests for use in the United States and Canada
• RoHS compliance means this pluggable Terminal Block contains only minimal amounts of any harmful materials

Phoenix Contact MINI COMBICON IMC 1,5 3.81mm Pitch Mini Plug-In Inverted Terminal Block Plugs

MINI COMBICON IMC 1,5 3.81mm pitch mini plug-in cable mount inverted Terminal Block plugs with a 0.14 to 1.5mm² screw connection and 180° wire entry. These MINI COMBICON IMC 3.81mm pitch mini plug-in free hanging Terminal Block plugs are for use with IMC 1,5 headers and MC 1,5 plugs for cable mount applications.
Stock numbers with part number prefix 1858 (IMC 1,5 - STGF) also have a threaded mounting flange
For mating header connectors see stock numbers 804-5026, 804-2484 and 804-2336 typically
For screwdriver see stock number 390-9663
For marker labels see stock number 648-5508
For cable housing see stock number 742-7409
