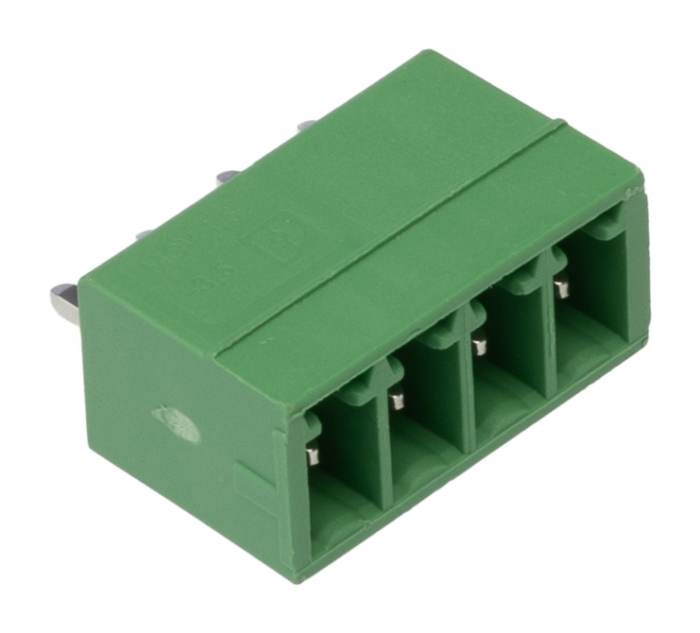

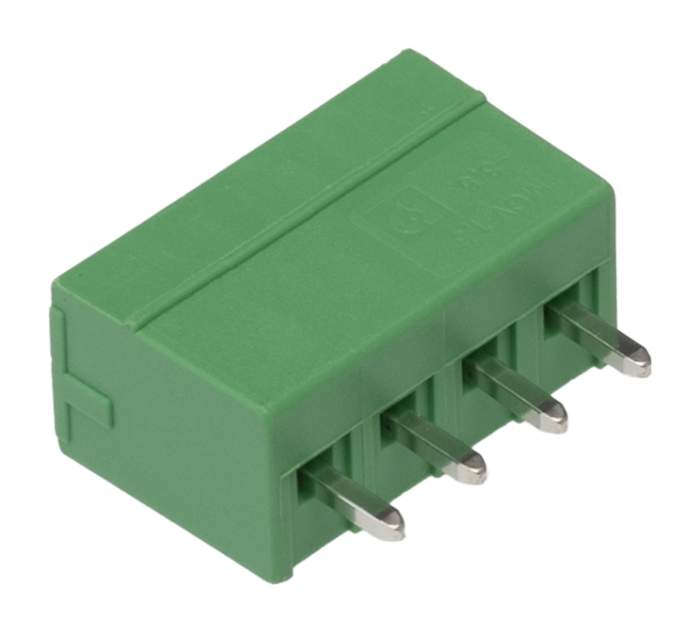

Mini PCB header, vertical, 3.5mm, 4 way

Phoenix Contact MCV 1.5/ 4-G-3.5 Series Pluggable Terminal Block, 4 Contacts, 8.0A Current Rating - 1843622

This pluggable terminal block is designed for efficient connectivity in various applications. It features a through hole design that provides reliable mounting on PCBs. Measuring 15.4mm in width, the terminal block offers a 3.5mm pitch and is constructed from high-quality PBT material in a striking green colour. With a current rating of 8A, it ensures stable performance for electronic connections.

Features & Benefits

• Offers 4 contacts for versatile connection possibilities
• Compatible with wave soldering for easy assembly
• Designed for a straight body orientation for seamless integration
• Utilises solder termination for reliable electrical connections
• Made from copper alloy for improved conductivity
• Rated for 250V, ensuring safety in various applications

Applications

• Used in automation equipment to connect control devices
• Suitable for electrical panels in commercial installations
• Employed in mechanical systems for reliable circuit connections
• Ideal for PCB designs needing compact and efficient connectors

What is the maximum number of positions available with this terminal block?

The terminal block supports a maximum of 4 positions, allowing for multiple connections in a compact layout.

How does the material of this terminal block enhance its performance?

The copper alloy construction ensures optimal conductivity, while the PBT material provides durability and resistance to environmental conditions.

What advantages does the 3.5mm pitch provide in design flexibility?

The 3.5mm pitch allows for denser packing on PCBs, maximising space while maintaining effective connectivity between components.

Can this terminal block be used in high-temperature environments?

Yes, it operates effectively in ambient temperatures ranging from -40°C to 100°C, adapting to various industrial applications.

What type of devices can benefit from this terminal block's specifications?

This terminal block is ideal for use in automation, electronics, and electrical systems where reliable and efficient connections are crucial.
