Panasonic ERJP08F4701V

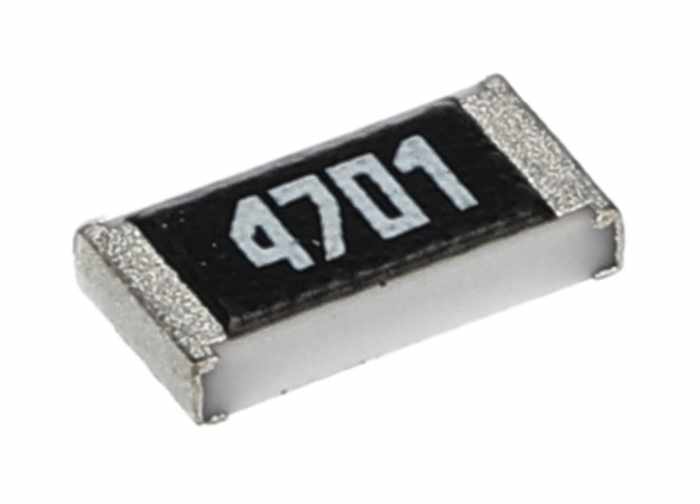

Panasonic ERJP08 Series SMD Resistor, 4.7 kΩ Resistance, 0.66W Power Rating - ERJP08F4701V

This SMD resistor is designed to deliver precise resistance in electronic circuits. With a resistance Value of 4.7kΩ and housed in a 1206 (3216M) case, this component utilises thick film technology to ensure reliability and performance. Operating across a temperature range of -55°C to +155°C, it meets automotive standards, making it suitable for a variety of demanding applications.

Features & Benefits

• Provides a nominal resistance of 4.7 kΩ for accurate circuit design
  Employs thick film technology for enhanced performance and stability
  Compatible with standard 1206 SMD layouts for easy integration
  Offers a power rating of 0.66W for efficient energy management
  Ensures ±1% tolerance for dependable circuit operation

Applications

• Used for precision measurements in automotive electronics
  Ideal for power management within complex circuits
  Utilised in high-temperature scenarios in various industries
  Commonly integrated into control systems for automation

What is the significance of the tolerance level for this resistor?

The ±1% tolerance level indicates that the resistance will vary no more than 1% from its nominal value, ensuring reliable performance in critical applications where precision is essential.

How does the power rating impact the component’s performance?

The 0.66W power rating signifies the maximum power the resistor can handle without risk of damage or overheating, making it suitable for circuits with moderate energy requirements.

What type of technologies is this resistor suitable for?

This resistor is specially designed for applications requiring automotive-grade components and can be effectively used in electronic systems that demand durability and reliability under challenging conditions.

Standards

IEC 60115-8, JIS C 5201-8, EIAK RC-2134
