Panasonic ERA6AEB562V

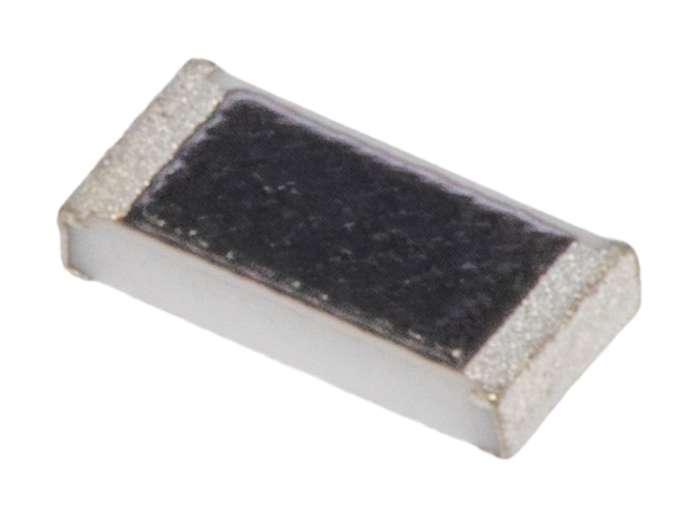

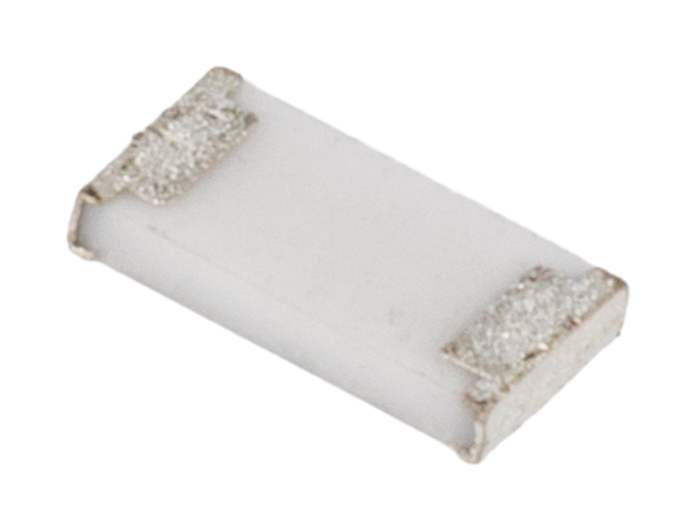

Panasonic ERA Series SMD Resistor, 5.6 kΩ Resistance, Thin Film Technology - ERA6AEB562V

This SMD resistor is a high precision component from the Thin Film technology category, featuring a resistance Value of 5.6 kΩ. Designed in an 0805 (2012M) package, this low tolerance resistor offers exceptional accuracy with a tolerance of ±0.1 %. It operates effectively in temperature ranges from -55°C to +155°C, making it Ideal for automotive applications and other demanding environments.

Features & Benefits

• Utilises thin film technology for high precision measurements
  Maintains low tolerance at ±0.1 % for accurate performance
  Rated at 0.125 W for efficient power handling
  Complies with AEC-Q200 standards for automotive reliability
  Features a temperature coefficient of ±25 ppm/°C for stability
  Compact 0805 package minimises space in PCB designs

Applications

• Used in precision electronic circuitry for automotive systems
  Ideal for high-speed signal processing and filtering
  Utilised in low noise amplifiers for enhanced performance
  Suitable for consumer electronics requiring Compact design
  Effective in industrial equipment for enhanced durability

What thermal properties should I consider when using this component?

The component boasts a minimum operating temperature of -55°C and a maximum of +155°C, making it versatile for various temperature-sensitive applications.

How can I ensure accuracy in my electronic designs with this resistor?

The low tolerance of ±0.1 % ensures highly accurate resistance values, which is Crucial for maintaining signal integrity in precision applications.

What advantages does thin film technology offer over other resistor technologies?

Thin film technology allows for tighter tolerances and better temperature stability, making it preferable for high-performance applications.

In which automotive applications is this resistor particularly beneficial?

It is particularly beneficial in applications that require strict compliance with AEC-Q200 standards, ensuring reliability in challenging environments often found in automotive systems.

Standards

IEC 60115-8, JIS C 5201-8, EIAJ RC-2133B
