Panasonic ERA6AEB273V

Panasonic ERA Series SMD Resistor, 27 kΩ Resistance, ±0.1 % Tolerance - ERA6AEB273V

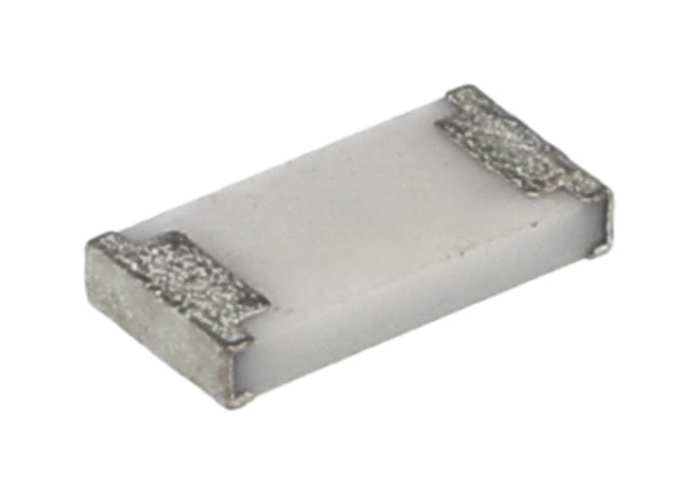

This SMD resistor is a high-precision 27 kΩ thin film resistor designed to meet stringent requirements in various electronic applications. Encased in a Compact 0805 (2012M) package, it ensures optimal performance in confined spaces. The resistor features a tolerance of ±0.1% and operates effectively over a wide temperature range, from -55°C to +155°C. As a TOP choice for automotive applications, it adheres to the AEC-Q200 standard, guaranteeing its reliability in critical environments.

Features & Benefits

• High precision with a tolerance of ±0.1% for accurate performance
  Low temperature coefficient of ±25 ppm/°C for minimal drift
  SMD format allows for space-efficient circuit designs
  Operates over a wide temperature range for robust performance
  Compliant with AEC-Q200, ensuring automotive-grade reliability
  Power rating of 0.125 W suitable for moderate power circuits

Applications

• Used in automotive electronic control units
  Ideal for high-performance circuit designs
  Utilised in precision instrumentation and measurement devices
  Suitable for low noise in sensitive environments
  Effective in embedded systems where space is a premium

How does the low tolerance impact circuit performance?

The low tolerance of ±0.1% ensures that the resistor maintains its specified Value under varying conditions, enabling precise circuit operation and stability. This is particularly beneficial in applications where accuracy is crucial, such as in measurement and control systems.

What operational temperatures can be expected with this component?

This component can function efficiently within a temperature spectrum from -55°C to +155°C, making it suitable for a variety of environments, including extreme conditions often found in automotive applications.

What makes this component suitable for automotive applications?

It meets the AEC-Q200 standard, verifying its capability to withstand harsh automotive environments. This includes exposure to temperature extremes, vibrations, and other demanding conditions, ensuring long-term reliability in vehicles.

Can it be used in high-frequency applications?

Yes, being a thin film resistor, it exhibits low parasitic capacitance and inductance, making it an excellent choice for high-frequency applications where signal integrity is paramount.

What benefits does the thin film technology provide?

Thin film technology offers enhanced precision and stability compared to thick film alternatives. It ensures lower noise levels and superior thermal performance, which is essential in high-quality electronic circuit designs.

Standards

IEC 60115-8, JIS C 5201-8, EIAJ RC-2133B
