Panasonic ERA6AEB272V

Panasonic ERA Series SMD Resistor, 2.7 kΩ Resistance, 0.125W Power Rating - ERA6AEB272V

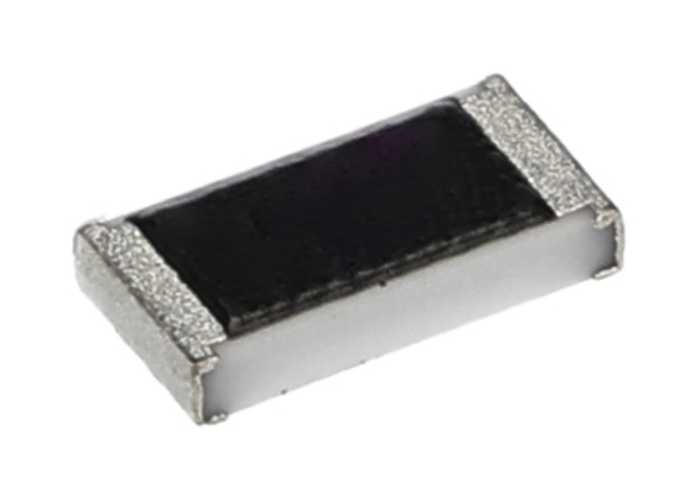

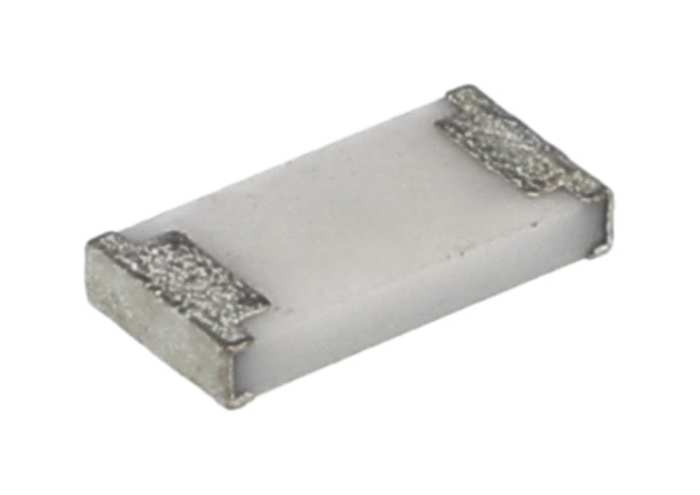

This SMD resistor is a high-precision component designed for a variety of electronic applications. Featuring a resistance of 2.7 kΩ and constructed using thin film technology, this resistor comes in a Compact 0805 package. With a tolerance of ±0.1%, it ensures consistent performance across a temperature range of -55°C to +155°C.

Features & Benefits

• Constructed using thin film technology for improved reliability
  Provides a precise resistance of 2.7 kΩ for enhanced accuracy
  AEC-Q200 compliant resistor ensures automotive-grade standards
  Exhibits a low tolerance of ±0.1% for dependable measurements
  Capable of handling a power rating of 0.125 W for efficient operation
  Temperature coefficient of ±25 ppm/°C for stability in varying loads

Applications

• Utilised in automotive electronics for circuit management
  Applied in control systems within automation engineering
  Suitable for use in precision measurement devices
  Integrated into consumer electronics for optimal performance

What is the significance of the AEC-Q200 compliance for this component?

The AEC-Q200 compliance indicates that the component meets stringent automotive standards, making it suitable for use in demanding automotive applications where reliability and performance are critical.

How does the temperature coefficient affect the operation of this resistor?

With a temperature coefficient of ±25 ppm/°C, it maintains stable resistance values across temperature fluctuations, ensuring consistent operation in varied environmental conditions.

What types of circuits can benefit from using this 2.7 kΩ resistor?

This resistor is Ideal for precision circuits, including control systems and signal processing applications, where accurate resistance values enhance overall circuit performance.

What precautions should be taken to maintain the longevity of this resistor?

To preserve its performance, it should be installed within specified temperature ranges and not subjected to excessive power ratings beyond the 0.125 W limit.

In which scenarios is a low tolerance SMD resistor preferable over other types?

A low tolerance SMD resistor is preferable in applications requiring high accuracy and stability, such as instrumentation, measurement devices, and automotive systems where precision is essential.

Standards

IEC 60115-8, JIS C 5201-8, EIAJ RC-2133B
