Panasonic ERA6AEB222V

Panasonic Series ERA SMD Resistor, 2.2kΩ Resistance, ±0.1 % Tolerance - ERA6AEB222V

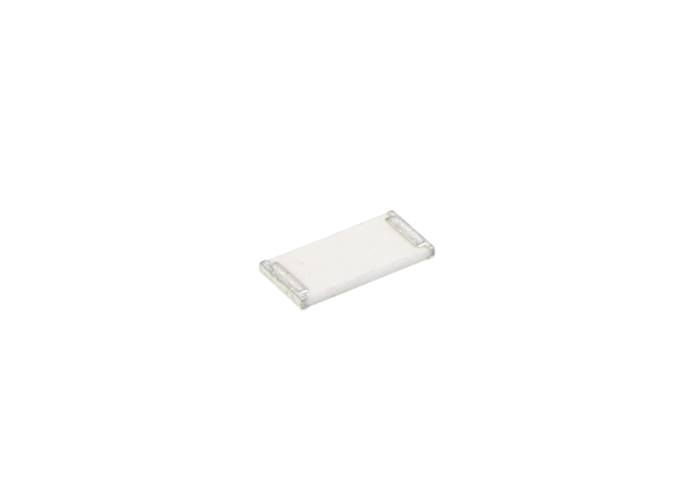

This SMD resistor is a thin film component designed for precision applications within the electronics and automotive industries. With a resistance Value of 2.2 kΩ, it is housed in an 0805 resistor package, ensuring compatibility with surface mount technology. This product adheres to the automotive standard AEC-Q200, making it suitable for high-reliability environments.

Features & Benefits

• Provides a resistance tolerance of ±0.1% for precise performance
• Offers a temperature coefficient of ±25 ppm/°C, enhancing stability
• High performance with minimal noise and reliable linearity
• Capable of operation between -55 °C and 155 °C for diverse applications
• Designed to withstand high temperatures and humidity for reliability
• Compliant with IEC 60115-8 standards for quality assurance

Applications

• Used in automotive electronics for reliable performance
• Ideal for precision measurement and control circuits
• Suitable for industrial automation and monitoring systems
• Employed in high-frequency where stability is Crucial

What advantages does the low tolerance of this product offer in electronic circuits?

The low tolerance of ±0.1% ensures consistent and accurate readings in electronic circuits, making it Ideal for precision applications where minute variations can have significant impacts on performance.

How does the resistor maintain stability across varying temperatures?

The design incorporates a temperature coefficient of ±25 ppm/°C, which minimises the change in resistance with temperature fluctuations, ensuring reliable operation under different environmental conditions.

What are the Crucial considerations for soldering this component onto PCBs?

When soldering, it is essential to avoid using halogen-based flux and to ensure that the soldering iron does not directly touch the resistor body to prevent overheating and damage. Following recommended soldering conditions enhances reliability.

In what specific situations would compliance with the automotive standard AEC-Q200 be necessary?

This compliance is Crucial in automotive applications where components must endure extreme conditions, including high temperatures, humidity, and vibration, ensuring consistent performance and longevity in vehicles.

How does this product contribute to reducing noise in electronic circuits?

The low current noise characteristic of the resistor limits interference in sensitive applications, enhancing signal integrity and overall circuit performance, particularly beneficial in audio and precision instrumentation.
