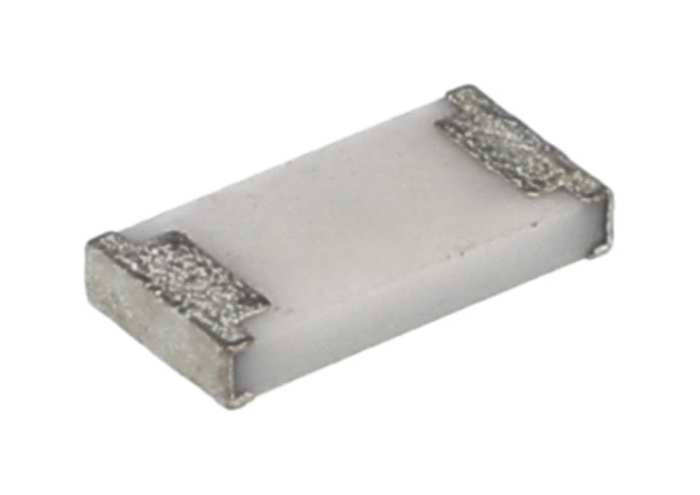

Panasonic ERA Series SMD Resistor, 120 kΩ Resistance, ±0.1 % Tolerance - ERA6AEB124V

This SMD resistor is a high-performance component, Ideal for a wide range of electronic applications. Constructed using thin film technology, it offers precision resistance of 120 kΩ within a Compact 0805 (2012M) package. Designed specifically to meet automotive standards, it operates efficiently across a temperature range from -55°C to +155°C, making it reliable in various environments. The tolerance level of ±0.1 % assures consistent performance for critical applications.

Features & Benefits

• Utilises thin film technology for high precision performance
  Operates effectively over a wide temperature range
  Features low tolerance for enhanced accuracy in circuits
  AEC-Q200 compliant ensuring automotive-grade reliability
  Compact 0805 size optimises space on PCBs
  Rated power of 0.125 W suitable for numerous applications

Applications

• Used in automotive electronic control units
  Ideal for precision measurement instruments
  Suitable for medical device circuitry
  Effective in high-frequency in telecommunications

What advantages does the operational temperature range provide?

The operational temperature range from -55°C to +155°C ensures the component Can be used in extreme environments without sacrificing performance or reliability, making it suitable for diverse applications across industries.

How does the low tolerance enhance circuit functionality?

The ±0.1 % tolerance allows for minimal deviation in resistance values, resulting in improved accuracy and stability in circuits essential for high-precision applications such as automotive and medical devices.

What role does the Compact size play in electronic design?

The 0805 package size enables designers to optimise PCB space, allowing for more components to be placed in smaller areas, which is Crucial for modern electronic designs where space efficiency is paramount.

Why is AEC-Q200 compliance significant for this resistor?

AEC-Q200 compliance indicates that the component meets stringent automotive industry standards, ensuring reliability, durability, and performance in automotive applications where failure is not an option.

Standards

IEC 60115-8, JIS C 5201-8, EIAJ RC-2133B
