Panasonic ERA3AEB470V

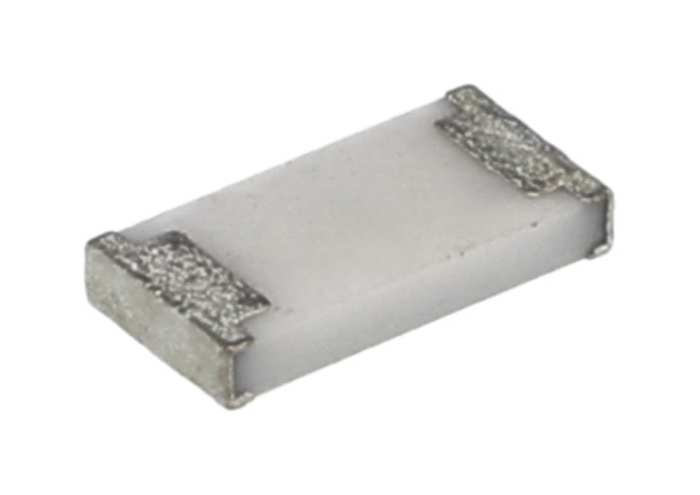

Panasonic ERA Series SMD Resistor, 47Ω Resistance, ±0.1 % Tolerance - ERA3AEB470V

This SMD resistor is a high precision component designed for modern electronic applications. With a resistance Value of 47 Ω, it utilises thin film technology, ensuring superior performance. The Compact 0603 package makes it compatible with various circuits, meeting the stringent requirements of professionals in the electrical and mechanical industries.

Features & Benefits

• Features a resistance of 47 Ω for precise circuit performance
  Utilises thin film technology for enhanced accuracy
  Encased in a Compact 0603 package for versatile integration
  Offers a low tolerance of ±0.1 % for high reliability
  Rated power at 0.1 W for efficient energy management
  Compliant with AEC-Q200, suitable for automotive applications

Applications

• Used for precise current regulation in electronic devices
  Ideal for requiring high precision and reliability
  Commonly used in automotive electronics to ensure performance
  Utilised in power management circuits for optimal efficiency

How does the temperature range affect performance?

Operating within -55°C to +155°C ensures stability and reliability across various environmental conditions, making this component suitable for diverse applications.

What benefits does a low tolerance provide in circuit design?

A low tolerance of ±0.1 % guarantees accuracy in circuit operations, minimising errors and enhancing overall system performance.

Can this resistor withstand automotive environments?

Yes, compliance with AEC-Q200 standards assures its reliability in demanding automotive applications, ensuring longevity and consistent performance.

How can the power rating influence circuit design?

With a power rating of 0.1 W, it is critical for efficient design, allowing components to operate without excessive heat generation, which could otherwise lead to failure.

Standards

IEC 60115-8, JIS C 5201-8, EIAJ RC-2133B
