Relay socket LY type

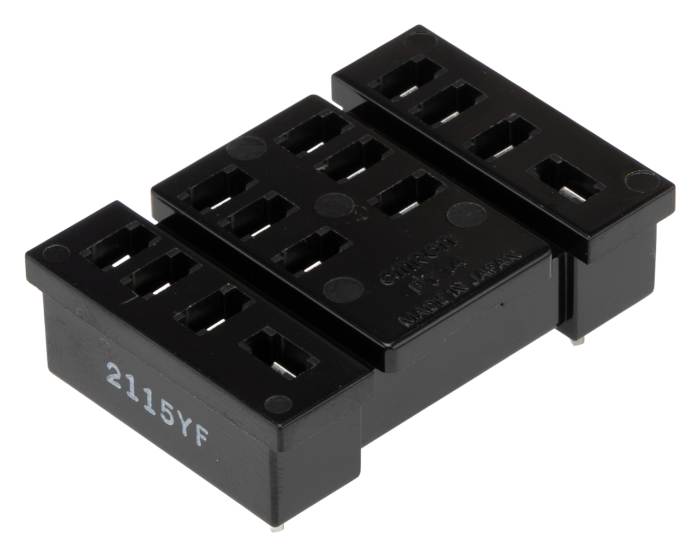

Omron Series PT Relay Socket, 250V Voltage, 15A Current Rating - PT14-0

This relay socket is designed to facilitate seamless connections in electronic applications. Ideal for use with LY Series relays, this PCB mount relay accessory provides reliable functionality. With a current rating of 15A and a voltage capacity of 250V AC, it supports robust performance. Incorporating a PCB pin termination type, it ensures simple integration into various circuit designs, making it a valuable component for your projects.

Features & Benefits

• Accommodates up to 14 contacts for versatile connections
• High voltage capability of 250V AC supports diverse applications
• 15A current rating ensures reliable performance under load
• PCB mount design allows easy installation on printed circuit boards
• Optimised for use with LY Series relays for enhanced compatibility
• PCB pin type termination simplifies wiring configurations

Applications

• Utilised in electrical control panels for automated systems
• Ideal for sectors requiring reliable relay connections
• Employed in industrial machinery for circuit management
• Suitable for any project needing robust relay integration

How does the current rating affect its performance in practical scenarios?

A current rating of 15A allows it to manage substantial electrical loads efficiently, making it suitable for applications where reliable switching is essential, such as in control systems.

What type of mounting options are available?

It features a PCB mount design, allowing for straightforward installation on various circuit boards, thereby saving space and simplifying integration into existing systems.

Can it be used in high-frequency applications?

Given its specifications, it is primarily designed for standard relay applications. For high-frequency uses, verify compatibility with additional circuit specifications to ensure optimal performance.

What are the temperature limits for operating this component?

While specific temperature limits are not detailed, components like these typically operate effectively within ranges common to PCB applications, usually between -40°C to +85°C, depending on the specific relay in use.

LY Series

• Withstand voltage 2000V coil to contact
• Arc barriers to prevent flash-over between adjacent poles
• Relay clips for DIN types available separately
• Contact resistance: 50mΩ
• Isolation coil to contact: 12kV
• Operating temperature range: -25 to +55°C
• Switching Voltage: 110Vac; 24Vdc
• Contact material: AgCdO
• Dimensions: H42.4mm x W28mm x D41.5mm

Approvals

VDE, UL, CSA, TUV
