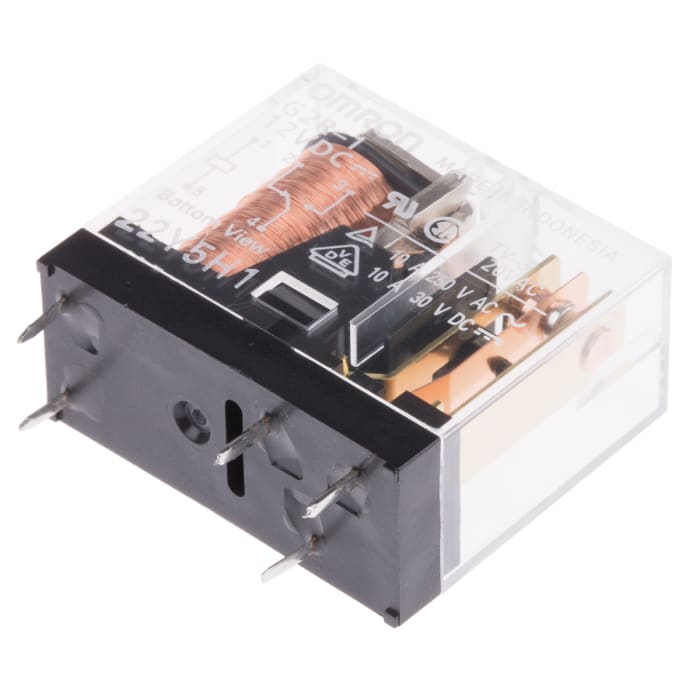

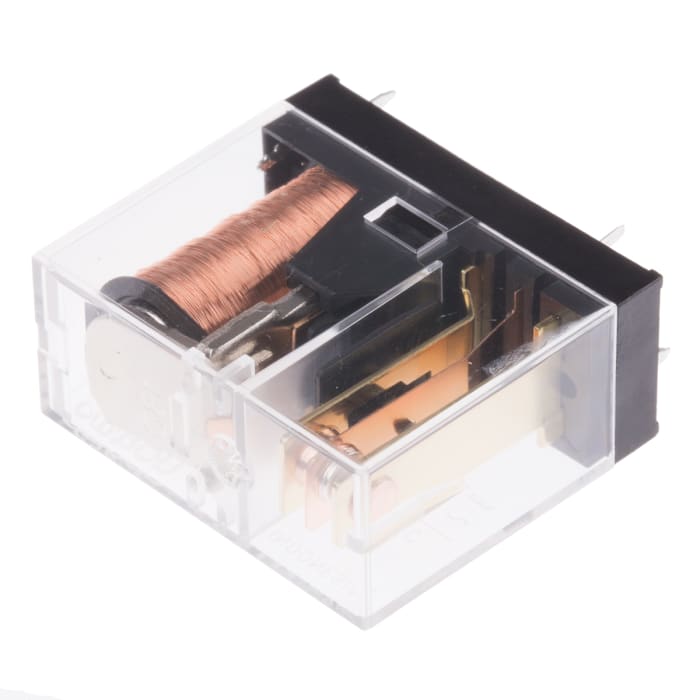

Omron G2R Series Power Relay, 12V DC Coil Voltage, 10A Switching Current - G2R-1 DC12BYOMI

This power relay is a versatile SPDT relay designed for efficient performance in various electronic applications. It operates at a coil voltage of 12V DC and supports a switching current of up to 10A. The compact dimensions of 29mm in length, 13mm in depth, and 25.5mm in height make it suitable for PCB mounting in space-constrained environments.

Features & Benefits

• High voltage rating with 380V AC and 125V DC capacity supports diverse applications
• Robust switching current up to 10 A ensures reliable performance
• Silver alloy contact material enhances longevity and reduces wear
• Fast operation time with a maximum release time of 5ms optimises responsiveness
• Practical plug-in terminal type simplifies installation and maintenance
• Wide operating temperature range from -40°C to +70°C accommodates fluctuating environments

Applications

• Ideal for use for systems and control panels
• Suitable for switching operations in electronic devices
• Utilised in relay circuits requiring reliable operation under varying conditions
• Excellent for involving motor control or lighting systems

What is the maximum switching voltage this relay can handle?

The relay can manage a maximum switching voltage of 380V AC and 125V DC, making it ideal for a range of high-voltage applications.

How does the choice of silver alloy in the contact material benefit performance?

Silver alloy in contact construction minimises electrical resistance, enhancing conductivity and ensuring a longer operational life even under heavy switching loads.

What mounting options are available for this relay?

This device features a plug-in terminal design, allowing for PCB mounting without the need for complicated installation processes.

What is the expected life expectancy under normal operating conditions?

The relay is rated for 100,000 operations, providing long-lasting reliability in various electronic applications, ensuring minimal downtime.
