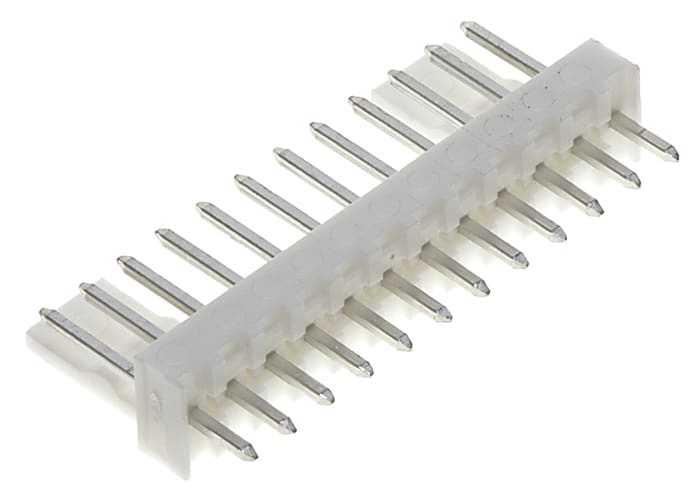

12way straightPCB header w/friction lock

Molex Pin Header, Through-Hole Mounting, Solder Termination - KK 254 Series - 22-27-2121

Make board connections in a jiffy with this pin header from Molex. It has 12 contacts arranged in a single row, so you can hook your PCB up to cables, components and other boards. A straight friction lock helps ensure that connectors stay in place, so you can rest assured they're secure even in high-vibration environments. The tin-plated brass contacts are highly conductive and corrosion-resistant, so you can be sure of reliable performance, even in damp settings.

Features & Benefits

• Through-hole mounting with solder termination for straightforward installation
• 250V voltage rating, suitable for high-power applications
• Standard 2.54mm pitch for broad compatibility
• Weight of only 1.25g keeps your setup light

Applications

• Consumer electronics
• IT maintenance and repair
• Automotive manufacturing

What's the housing of this pin header made from?

It's made from nylon, which is reliably robust and durable enough to shrug off bumps and scratches.

Molex KK 2.54mm Pitch PCB Headers with Straight Friction Lock, 6410 Series

Molex KK 254 PCB wire to board vertical headers with a straight friction lock to ensure secure retention when mated making them ideal for use in high vibration environments. The housings of these KK 2.54mm wire to board PCB header connectors are made from red UL 94V-0 nylon and the contacts are tin plated brass. These KK 6410 series 2.54mm headers mate with 2695 and 6471 series crimp terminal housings with locking ramps and 7880 series high pressure housings.

Approvals

UL (E29179) and CSA (LR 19980)
