8way straight PCB header w/friction lock

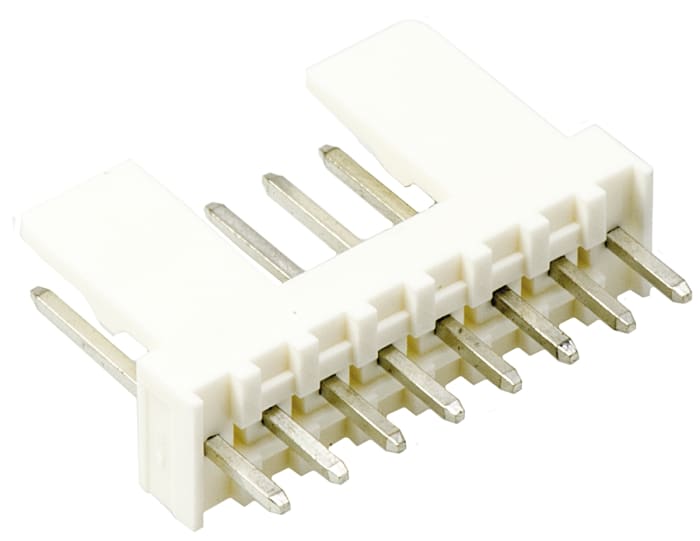

Molex Straight Pin PCB Header, 2.54mm Pitch, 8 Way - 6410 Series - 22-27-2081

This straight pin header from Molex allows you to attach up to eight wires to your PCB (printed circuit board) in a single, organised row. It features a straight friction lock to keep your wires securely in place, even in the event of heavy vibrations or mishandling. The header has a compact 2.54mm pitch for use in set-ups where space is limited. It's designed for soldering to your PCB to create an air-tight connection that delivers a reliably long service life.

Features & Benefits

• Tin-plated brass pins are corrosion-resistant for reliable performance
• Nylon housing material is resistant to abrasion and chemicals for use in demanding environments
• Contains low levels of halogen to reduce the risk of toxic fumes in the event of a fire
• Light weight of 0.9g means it won't add excessive bulk or strain on your connections

Applications

• Security systems
• Telecommunications
• Medical equipment manufacturing
• Automotive industry

Is this header shrouded?

No, this straight pin header is unshrouded as it's primarily designed for low-power applications where interference is negligible. This design means it takes up less space on your PCB.

Molex KK 2.54mm Pitch PCB Headers with Straight Friction Lock, 6410 Series

Molex KK 254 PCB wire to board vertical headers with a straight friction lock to ensure secure retention when mated making them ideal for use in high vibration environments. The housings of these KK 2.54mm wire to board PCB header connectors are made from red UL 94V-0 nylon and the contacts are tin plated brass. These KK 6410 series 2.54mm headers mate with 2695 and 6471 series crimp terminal housings with locking ramps and 7880 series high pressure housings.

Approvals

UL (E29179) and CSA (LR 19980)
