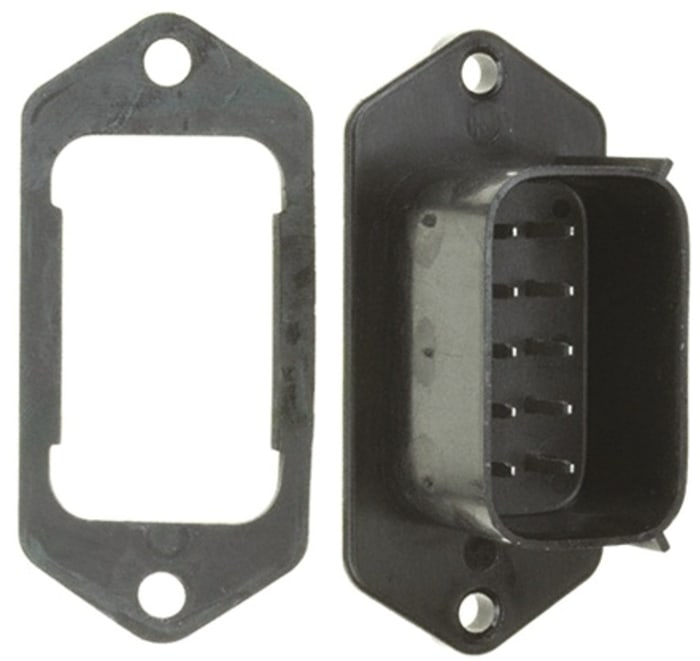

MX150-L vertical PCB header,10 way

Molex MX150L Series PCB Header, 5.84mm Pitch, 18A Current Rating - 19428-0014

This PCB header connector provides reliable wire-to-board connections tailored for a range of electronic applications. Its robust design ensures effective integration into automation, electrical machinery, and high-performance environments. The shrouded configuration enhances safety and durability, making it ideal for industries that require reliable connectivity solutions.

Features & Benefits

• Sturdy shrouded design ensures secure connections
• Rated for 600V for safe operation
• Designed for through-hole mounting, facilitating easy installation
• IP67 rating protects against dust and water
• Solder termination method ensures reliable electrical connections

Applications

• Utilised in power distribution systems
• Employed in industrial automation equipment
• Integrated into electronic control systems
• Suitable for telecommunications devices
• Compatible with various wire-to-board configurations

What is the maximum current rating for this connector?

The maximum current rating is 18.0A, ensuring effective performance under load.

Can it withstand harsh environmental conditions?

Yes, it is rated IP67, providing protection against dust and water.

What type of mounting does it require?

This connector is designed for through-hole mounting, facilitating straightforward installation.

How many circuits does it support?

It supports up to 10 circuits, allowing for multiple connections within a compact design.
