RFiD Click Shield

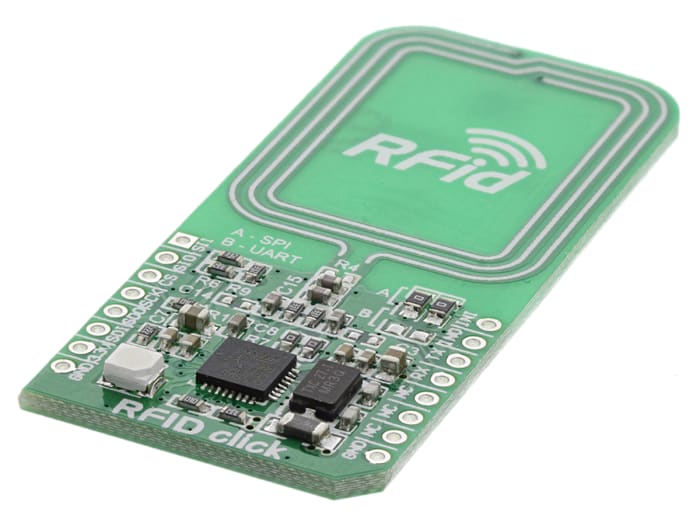

RFid click mikroBUS™

The Click accessory modules plug into the MikroBUS sockets in MikroElektronika microcontroller development boards. RFid click features a 13.56MHz contactless RFid transceiver and a trace antenna.

• CR95HF 13.56MHz contactless transceiver with trace antenna
• Supports ISO/IEC 14443 type A and B, ISO/IEC 15693 and ISO/IEC 18092 protocols (tags)
• It can detect, read and write NFC forum type 1, 2, 3 and 4 tags
• On-board dedicated internal frame controller and RF analogue front end (AFE)
• Communication: serial UART and SPI
• Power supply: +3.3Vdc
• Power indicator LED

Click mikroBUS™ Wireless Communication Boards

MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.

Notes

Click board comes with the header strips soldered.
