PSoC 4 Pioneer Development Kit

Infineon Development Kit, ARM Cortex M0 Core, 32 Bit Processor Family - CY8CKIT-042

This development kit is designed to facilitate rapid prototyping and development of embedded systems. It features an ARM Cortex-M0 core and offers a flexible platform for various microcontroller applications. This kit supports both 5V and 3.3V power supply voltages, making it versatile for different environments.

Features & Benefits

• Combines programmable digital and analogue blocks for adaptability
• Supports Arduino-compatible shields to extend functionality
• Includes a CapSense slider for intuitive touch-based control
• Features status LEDs to indicate operational states
• Utilises a PSoC 4200 device for enhanced performance

Applications

• Used for prototyping smart home automation systems
• Ideal for developing custom control solutions in industries
• Utilised in educational projects for teaching PSoC design
• Serves in testing and evaluating various electronic interfaces

What are the advantages of using the PSoC 4 architecture in embedded projects?

The PSoC 4 architecture allows for a high degree of flexibility, as it combines digital and analogue functionalities on a single chip. This integration simplifies design processes and reduces board space requirements.

How do I programme the CY8CKIT-042 using the onboard programmer?

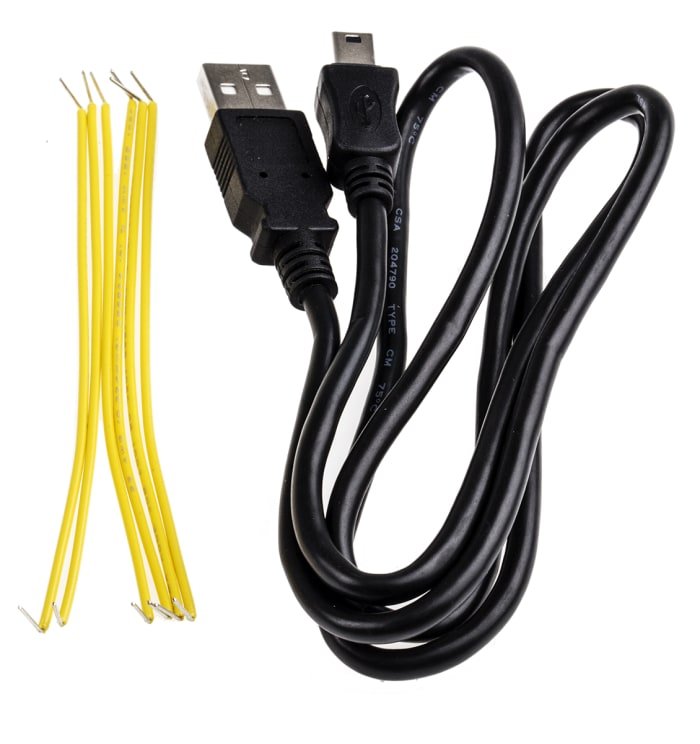

Connect the USB cable to the designated programming port and launch PSoC Creator to load your code. Initiate the programming process through the software interface to upload your firmware directly to the device.

Can this kit support other peripherals apart from Arduino shields?

Yes, it can support Digilent Pmod peripherals through its I/O headers, enabling interactions with various external modules, sensors, and actuators.

What kind of software environment is compatible with this development kit?

The kit is compatible with the PSoC Creator IDE, which provides a user-friendly interface for designing and programming the board's functionality using pre-verified PSoC components.

How can I ensure effective operation across different voltage supplies?

Ensure proper jumper settings are configured for voltage selection, enabling the kit to operate efficiently at either 3.3V or 5V, depending on the connected peripherals and intended applications.
