IP66 1NC microswitch with roller plunger

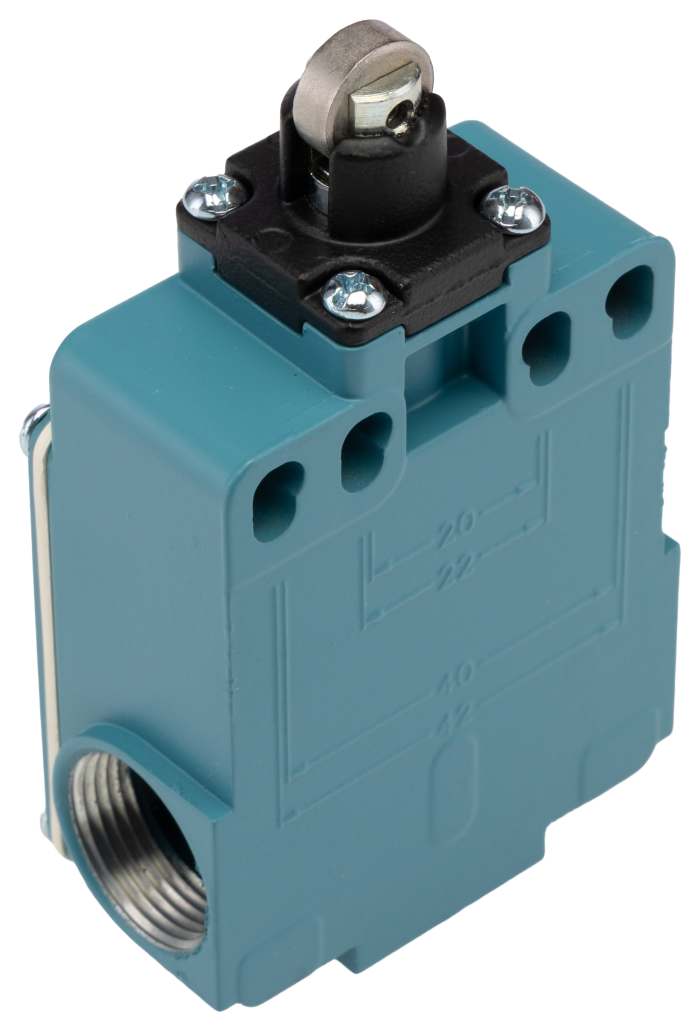

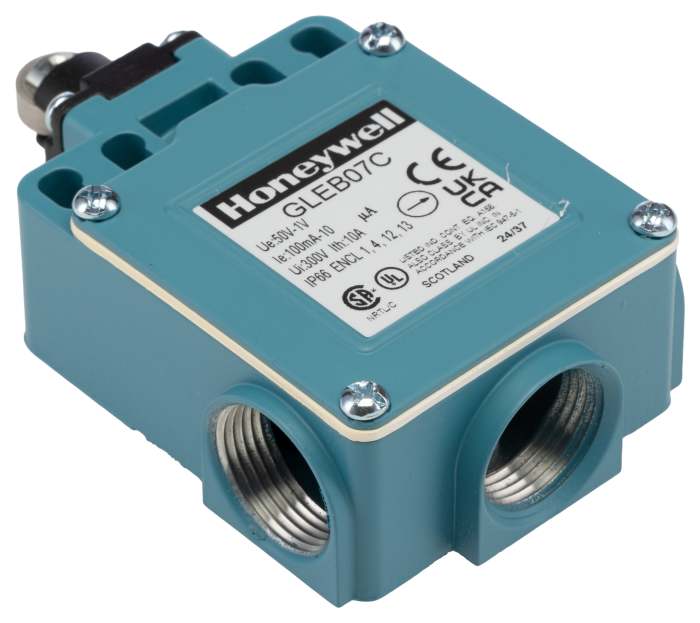

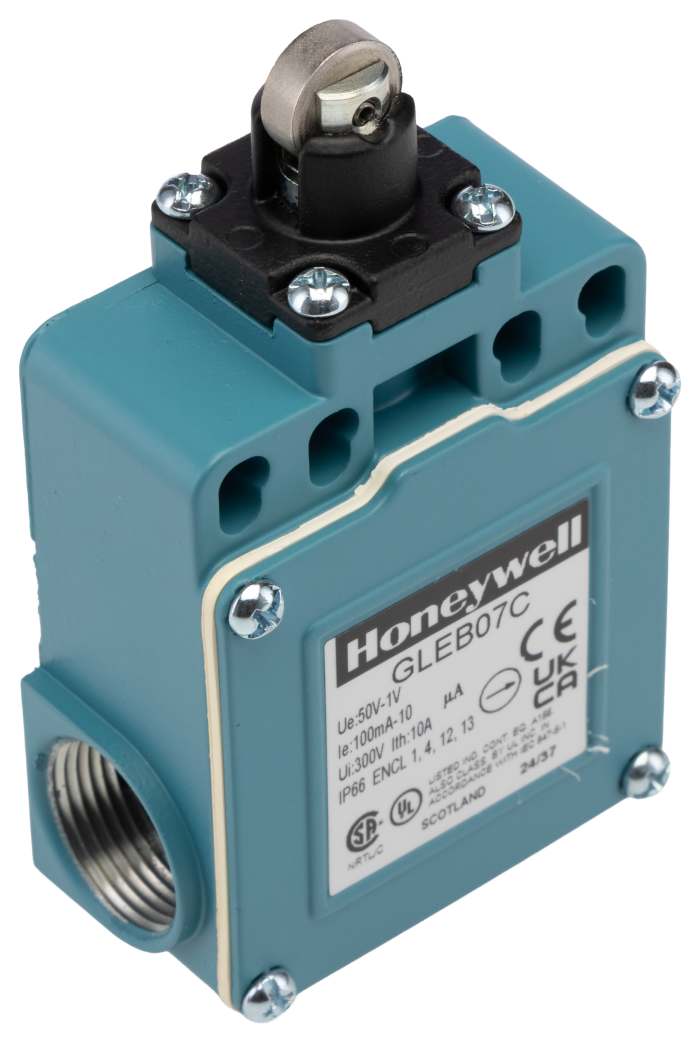

Honeywell GLE Series Limit Switch, 60mm Length, IP67 - GLEB07C

This limit switch is a compact, industrial actuator designed to detect mechanical position changes and provide reliable signalling in automation and control systems. It is intended for use where a robust, sealed sensor is required to withstand harsh environments and frequent actuation cycles.

Features and Benefits:

• Die-cast zinc housing delivers robust corrosion resistance and toughness
  Snap-action contacts ensure fast, repeatable switching performance
  1 NO 1 NC contact arrangement enables versatile control-logic integration
  Rated switching at 24V DC supports common low-voltage control circuits
  IP67 ingress protection permits use in wet or dust-prone locations
  Mechanical life of 15 million cycles reduces maintenance frequency

Applications

• Suitable for conveyor end-of-travel detection in manufacturing lines
  Ideal for limit sensing on industrial machinery with frequent cycles
  Used with gate and door interlocks requiring sealed switching
  Can be used for position feedback in automated assembly systems
  Suitable for monitoring actuators in outdoor enclosures

What conduit entry does it accept for cable routing?

It has a PG13.5 conduit entry to accommodate standard industrial cable glands.

What temperature range can the device operate within?

The switch functions across −40 °C to 85 °C ambient temperatures for varied environments.

How is the actuator implemented and how does it actuate?

It uses a plunger-style actuator that provides direct mechanical engagement for point detection.

What approvals and standards cover its safety and interoperability?

It is certificated to multiple standards including UL, cURus, IEC/EN 60947-5-1, CCC, CE and CSA.

What are the unit’s external proportions for panel or bracket mounting?

The enclosure measures 60mm by 65mm with a depth of 30mm for Compact installation.

Standards

IEC/EN 60947-5-1
While IEC/EN 609747-1 covers general rules relating to low voltage switchgear and controlgear, IEC/EN 60947-5-1 specifically relates to control circuit devices and switching elements. The standard monitors the characteristics of devices, the electrical and mechanical requirements and the functional requirements.

EN50047
GLC and GLD limit switches are constructed from housing that meets EN50047. EN50047 applies to position switches with an automatic return actuator. Models that meet EN50047 feature standardised characteristics and dimensions (30.5 x 31.1 x 68 mm).

IP 66
A rating of IP 66 ensures that the limit switch units are protected against dust and low-pressure jets of water.

Sealed to NEMA 1, 4, 12, 13
NEMA 1 states that enclosures can be used indoor and offers a degree of protection against contact with the equipment enclosed.
NEMA 4 states that enclosures can be used either indoor or outdoor and provide protection against windblown rain and dust, hose directed water and splashing water.
NEMA 12 states that enclosures are intended for use indoors and offer some protection from dust, dirt, falling dirt and dripping non-corrosive liquids.
NEMA 13 states that enclosures are used indoors and offer a level of protection from oil, non-corrosive coolants, spraying water and dust.

Approvals

UL/ UL listed for Canada

Warning

GLE limit switches are not safety devices. They should be not used as emergency stop or safety devices. They must not be used in applications where personal injury could occur as a result of product failure.
