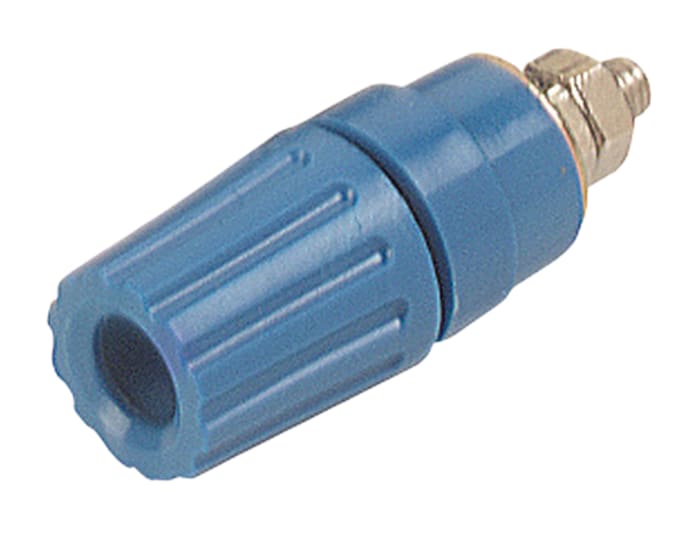

4mm panel socket, 35A, blue

PKI 110, CAT I 4mm Insulated Panel Binding Post

PKI 110 Hirschmann CAT I, 4mm fully insulated panel mount binding post with 2mm cross hole, offered in black, red and blue, nickel plated brass construction and with a M4 thread terminal. Part of the Hirschmann 4mm test system.

Features

• Rated at 35A 30VAC/60VDC
• CAT I
• 2 mΩ contact resistance
• Nickel plated brass
• Temperature range -25 to +100° C
• Maximum panel thickness 3.5mm
