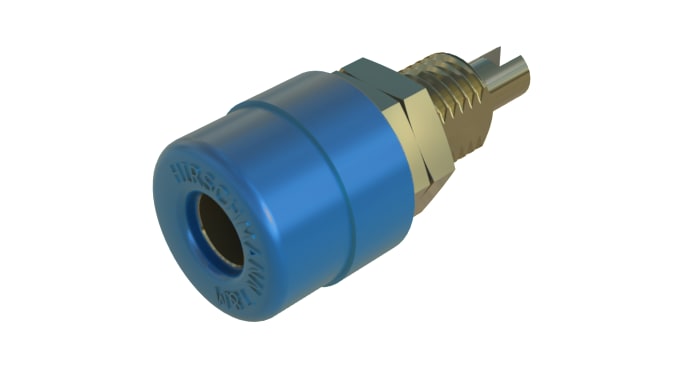

4mm panel socket,blue,gold plate,32A

BIL 20 / BIL 20 Au, CAT I 4mm Chassis Mount Test Sockets

Hirschmann Test and Measurement BIL 20 / BIL 20 Au, CAT I 4mm gold plated and nickel plated chassis mount test sockets with insulated head and ring, solder connection and M6 threaded body. These BIL 20 series 4mm test sockets are ideally suited for use in equipment chassis and switch panels with a wall thickness of up to 2mm.

• Rated voltage 30 VAC/ 60 VDC
• Rated Current 32A
• CAT I
• Screw mounting M6x0.75mm
• Solder termination
