Red pole terminal,4mm socket

Hirschmann Test & Measurement Test Socket

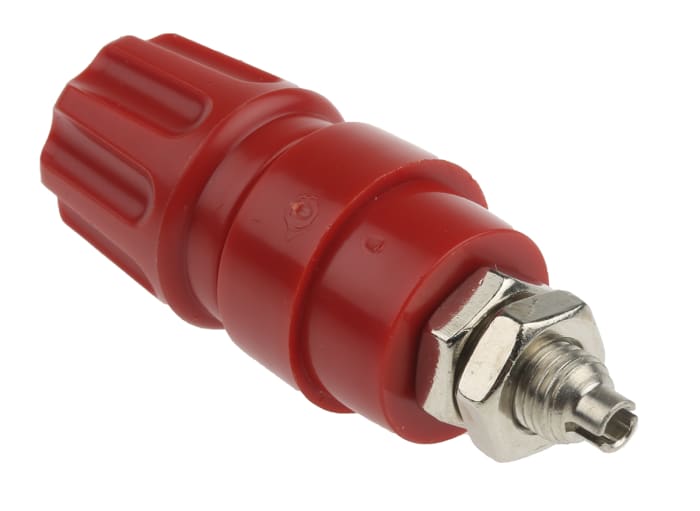

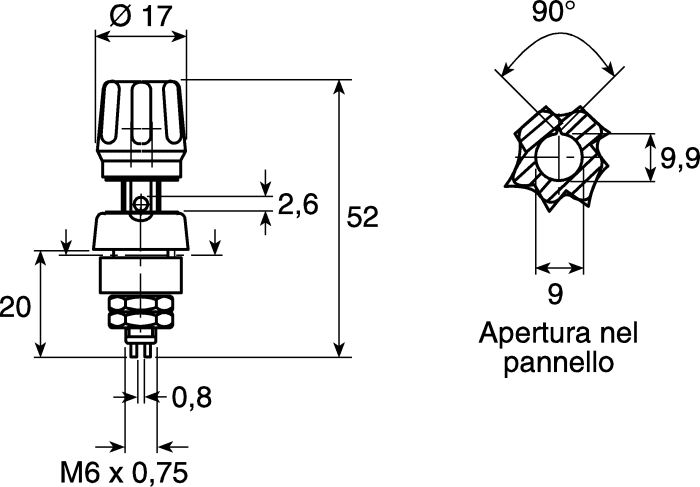

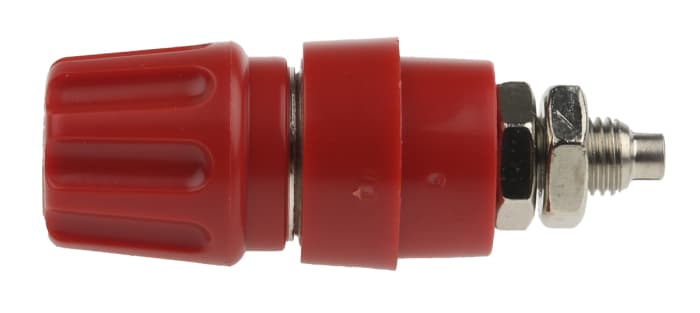

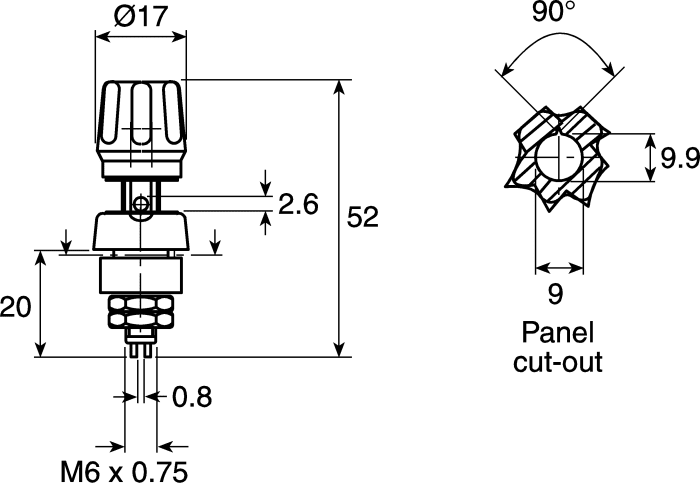

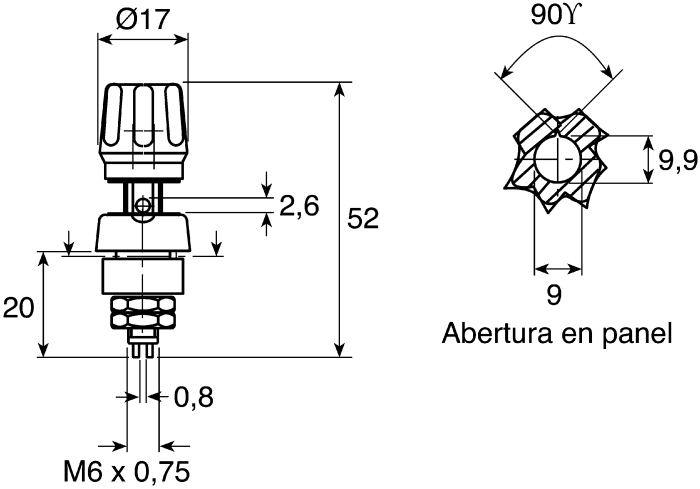

The Hirschmann Test & Measurement red chassis mount test socket has gold plating, a pole clamp-claw edge, captive-insulated head and an insulating ring. It incorporates a 4mm socket and an M6 x 0.75mm threaded nickel-plated brass bolt with a transverse hole of 2.6mm diameter for wire connection. It has a voltage rating of 30VAC/60VDC and a current rating of 63A.

Features and Benefits

• Screw mounting
• Hole diameter of 4mm
• Body material is phenolic resin
• Maximum panel thickness of 3.5mm
• Contact resistance is 2mohm

Certifications

• CAT I
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
