Lo type side entry hood for 2 lever,PG21

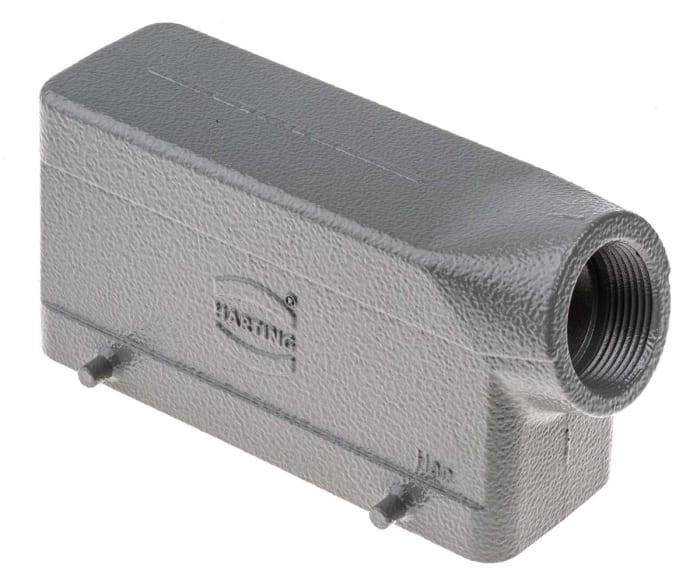

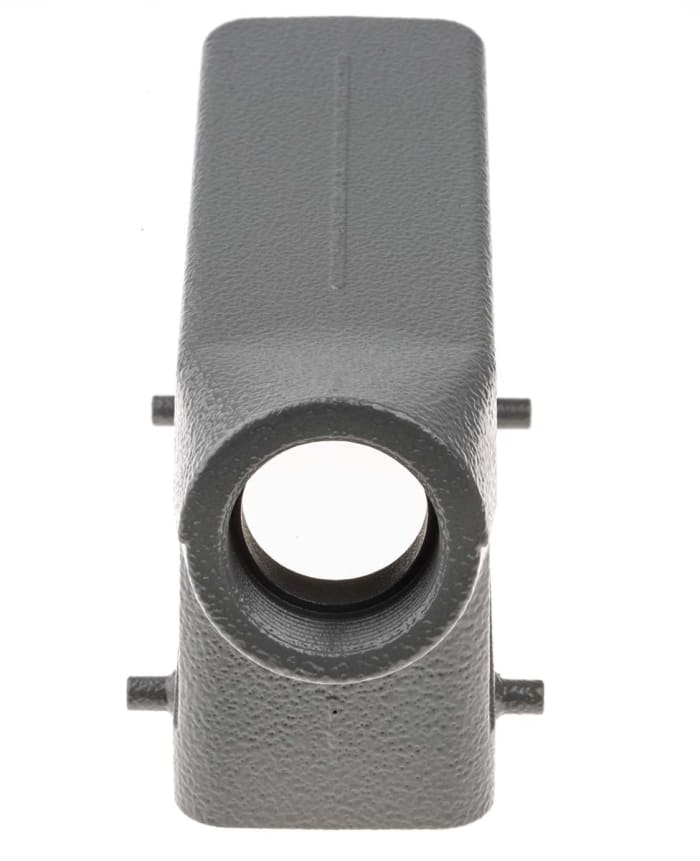

Harting Han B Series Heavy Duty Power Connector Hood, Die Cast Aluminium Body, Side Cable Entry Angle - 9300241520

This heavy-duty power connector hood provides a protective enclosure for industrial power connections, designed for use in harsh environments. Constructed from die-cast aluminium, it is intended to house mating connector components while offering sealed protection and a side cable entry arrangement for routing conductors.

Features & Benefits

• Die-cast aluminium body provides robust mechanical protection
  Side cable entry enables secure cable routing in confined spaces
  Two-lever locking offers reliable panel retention during connection
  Rated to IP65/IP66/IP67 for dust and water resistance
  Manufactured to size code 24B for compatibility with matching inserts

**Applications**

• Suitable for factory automation power distribution cabinets
  Ideal for industrial robotics power and signal junctions
  Used with machinery control panels requiring sealed cable entry
  Can be used for outdoor electrical enclosures exposed to water spray

How is the enclosure secured to its mating part?

Securing is achieved via a two-lever locking mechanism that clamps the hood to its counterpart, providing positive mechanical engagement during connection and disconnection.

What ingress protection levels does it provide and why does that matter?

The enclosure meets IP65, IP66 and IP67 classifications, indicating protection against dust, high-pressure water jets and temporary immersion, which is critical for maintaining electrical contact integrity in wet or dusty locations.

Where should the cable be routed into the housing?

Cable entry is configured at the side of the hood, allowing installation routing that keeps cables close to panels or machinery and reduces strain on terminations.

Which size Interface will fit this hood?

The hood is sized to accommodate components designated by the manufacturer as 24B, ensuring dimensional compatibility with matching 24B inserts and housings.

Approvals

UL, CSA, SEV

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.
