Harting HanA Series Heavy Duty Power Connector Insert, 10A Current Rating, 400V Voltage - 09200042611

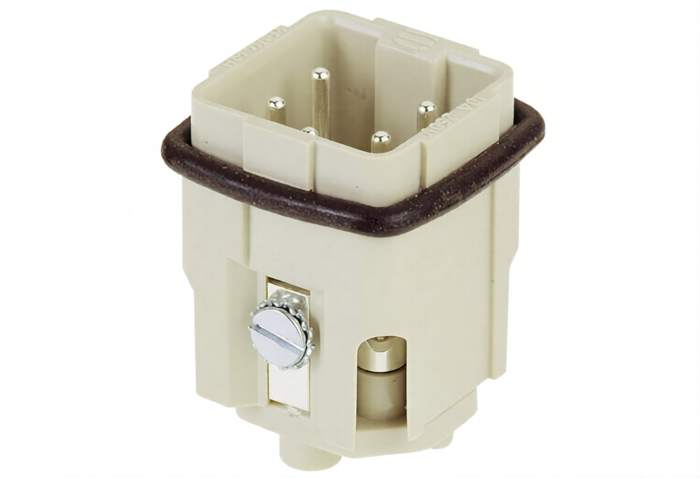

This heavy-duty power connector insert is a male, panel-mount power insert designed for industrial electrical connections. It provides a straight 4+E pole arrangement for machines and control equipment, operating up to 400V with screw termination and a Compact 3A size suitable for confined panel spaces.

Features & Benefits

• Rated current 10A providing steady power delivery under load
  Conductor cross-section 0.75–1.5 mm² enabling common cable use
  Silver-plated copper alloy contacts reducing contact resistance
  IP44 protection keeping connections shielded from splashes
  Tightening torque specifications ensure consistent terminations
  Operating temperature range -40 to +125°C for wide environmental use

**Applications**

• Suitable for power distribution in automation cabinets
  Ideal for machinery requiring a robust IP44 panel connector for machinery
  Used with control panels needing a panel-mount power connector with 4 contacts
  Can be used for temporary field wiring on industrial equipment

What conductor sizes can be terminated with this insert?

It accepts conductor cross-sections from 0.75 mm² up to 1.5 mm² with a stripping length of 2.5–5.5mm to secure conductors in screw terminals.

How does the insert perform electrically between conductors?

It is specified for a rated voltage conductor–conductor of 400V and a rated impulse voltage of 4 kV, suitable for standard industrial supply systems.

What materials and finishes are used for the contacts?

Contacts are formed from a copper alloy with a silver-plated surface to improve conductivity and wear resistance in repeated mating cycles.

How Durable are terminations and mechanical cycles?

Contact screws use M3/M3.5 threads with defined torque values and the insert is rated for at least 500 mating cycles, supporting frequent assembly and maintenance.

Notes

Two 16P + E inserts may be accommodated within a ’Size’ 32A housing (typical stock no 363-7964)

Approvals

UL, CSA, SEV

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.
