Harting 09200030801+09200042711

Harting HanA Series Heavy Duty Power Connector, Kit Contents Housing and Insert - 09200030801+09200042711

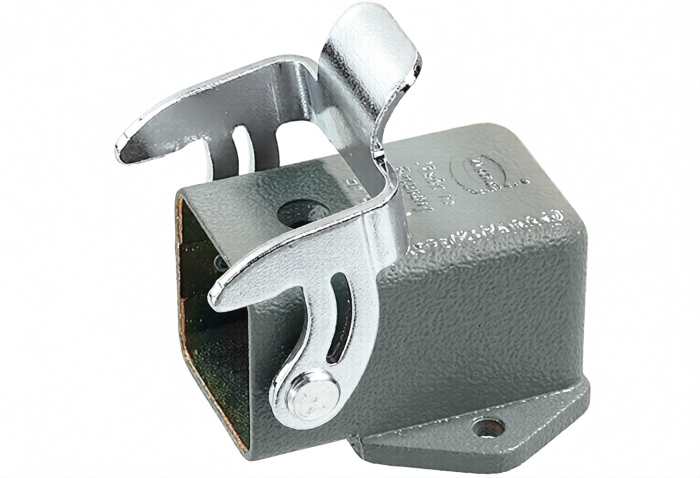

This heavy-duty power connector is a bulkhead-mounted, angled hood and insert combination designed for demanding industrial environments. It provides a protected Interface for high-current power transmission within machinery and control panels, supplied as a housing and insert kit. The assembly is zinc die-cast with a powder-coated finish and is intended for standard industrial applications where panel-mounted connections require a compact, secure enclosure and field-installable locking.

Features & Benefits

• Powder-coated zinc die-cast housing provides corrosion resistance and durability
  IP44 nominal protection that reaches IP65/IP67 with seal screw fitted
  Operating range -40 to +125°C supports extreme temperature conditions
  Single locking lever offers swift mating and secure retention
  Fixing with M3 screws and 1 Nm torque enables consistent panel attachment
  NBR seal material maintains environmental sealing under vibration

**Applications**

• Suitable for power distribution in automated machinery cabinets
  Ideal for heavy-current connections in factory equipment panels
  Used with mobile plant where harsh environmental sealing is required
  Can be used for retrofit of industrial connector housings and inserts
  Suitable for control enclosures requiring Compact bulkhead power feed

What materials are used for locking and sealing components?

Locking components are steel with zinc plating and the sealing compound is NBR to provide elastic sealing under repeated cycles.

How is ingress protection improved beyond the Basic rating?

Fitting the optional seal screw increases protection from IP44 to IP65 or IP67 depending on installation and screw torque.

What approvals relate to electrical safety and rail fire protection?

The item holds UL/CSA recognition and meets the rail fire protection standard EN45545-2 for specified hazard levels.

How is the product packaged and where is it manufactured?

It is supplied in batches of ten units per package and originates from Romania.

Notes

Male and female inserts may be fitted to a hood or housing if the installation requires such a reverse configuration.

Approvals

UL, CSA, SEV
