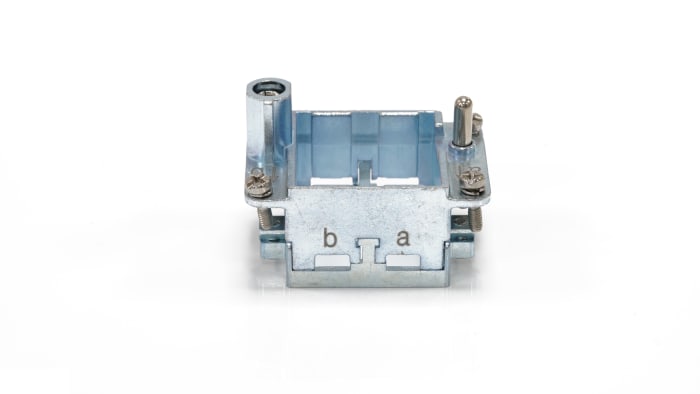

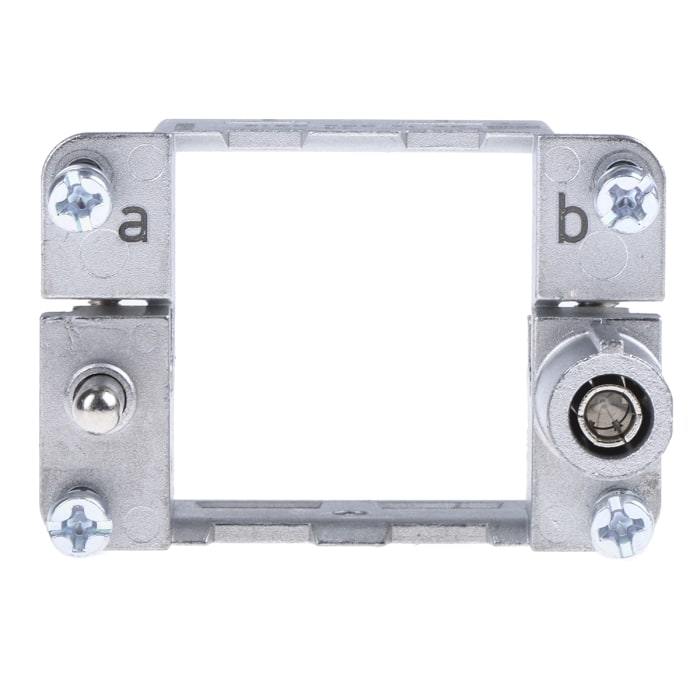

Harting HAN Modular Series Hinged Frame, 6B size, Grey - 9140060313

This hinged frame provides a robust metal housing solution for industrial connector assemblies, designed to integrate with standard Han hoods and housings. It offers a top-oriented cable entry and is finished in grey to suit typical control cabinet and field-installation aesthetics.

Features & Benefits

• Die-cast zinc construction reduces corrosion and long-term wear
  Top cable entry simplifies routing in confined panels
  Four-contact capacity supports Compact multi-conductor setups
  Accepts conductors from 4mm² to 10mm² for varied cable sizes
  M3 threaded fixing for secure mechanical attachment

**Applications**

• Suitable for automation junctions requiring Compact connector frames
  Ideal for electrical panels where TOP cable access is needed
  Used with Han hoods to assemble modular connectivity points
  Can be used for machinery interfaces needing four-contact terminations

What material is the frame MADE from and why is it chosen?

The frame is manufactured from die-cast zinc, selected for its dimensional stability and resistance to mechanical deformation in industrial settings.

Which cable sizes can be accommodated within the frame?

It supports conductor cross-sections ranging from 4mm² up to 10mm², enabling use with both small control and larger power cables.

How does the fixing arrangement secure the frame?

Threaded M3 points are provided for mounting, allowing consistent torque application and reliable mechanical retention.

Is the frame compatible with other connector components?

It is designed to mate with standard Han hoods and housings, permitting integration into existing modular connector assemblies.

Notes

The ’1’ module is for use with hoods and housings from range 2 – the Harting ’10A’ Series (see stock no. 181-0662 which is typical of that range)
