Pro3000 analog tone & probe kit

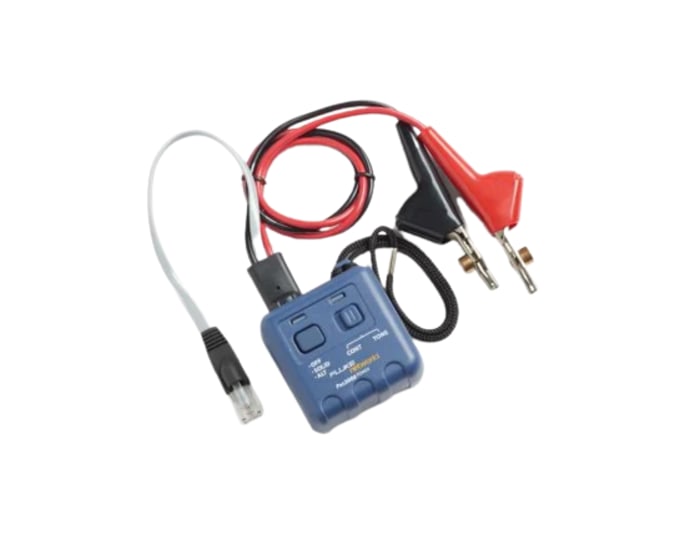

Fluke Tone Generator, 1000Hz Tone Frequency, Alkaline Battery Type - Pro3000

This tone generator is a battery-powered signal source designed to trace and identify communication and cabling pairs in industrial and field environments. It emits selectable cadenced tones to aid pair identification and polarity checks, and is supplied alongside an unfiltered probe with audio monitoring capability for clear cable tracing over long distances.

Features & Benefits

• 1000 Hz nominal solid tone for consistent signal identification
  Alternating 1000/1500 Hz cadence for pair differentiation
  Output 8 dBm into 600 Ω for Detectable signal on long runs
  Continuity mode provides 8V dc output for line verification
  Over-voltage protection at 60V dc for safe connection checks
  9V alkaline battery operation for field-ready portability

**Applications**

• Suitable for locating faults on twisted-pair network cables
  Ideal for tracing telephone and communication wiring over distance
  Used with probes to confirm pair continuity and polarity
  Can be used for cable routing verification in installations

How many distinct tones are available for pair identification?

Five distinct cadence options are provided so users can change tone patterns by shorting the targeted pair at either end to uniquely mark each pair.

What connection options does the probe provide for audio monitoring?

The probe includes a 3.5mm headphone jack and a volume control allowing direct listening and level adjustment during tracing.

What environmental range supports field operation?

The tools operate between −20 °C and 60 °C and can be stored between −40 °C and 70 °C to suit varied site conditions.

What protection exists when connecting to live lines?

The tone output and polarity functions are safeguarded against voltages up to 60V dc to reduce risk during testing.
