Relay interface timer SPDT 6A 12V ac/dc

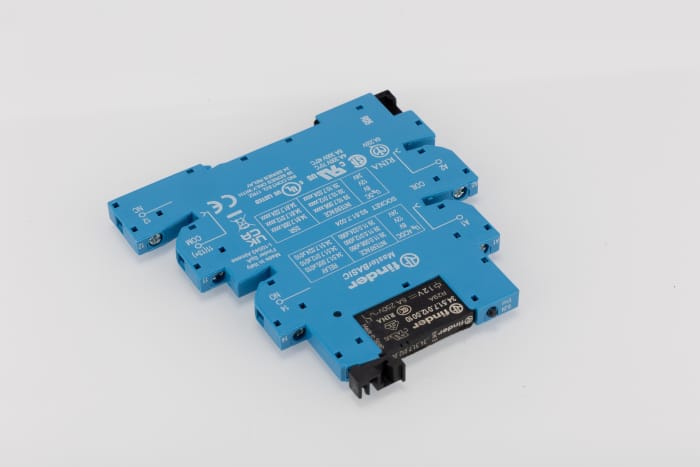

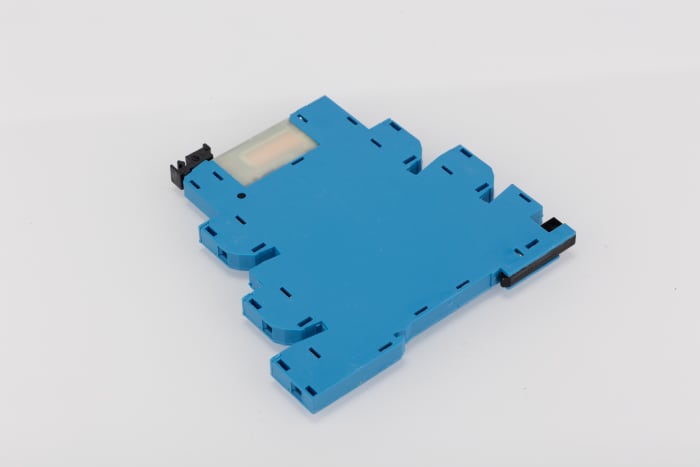

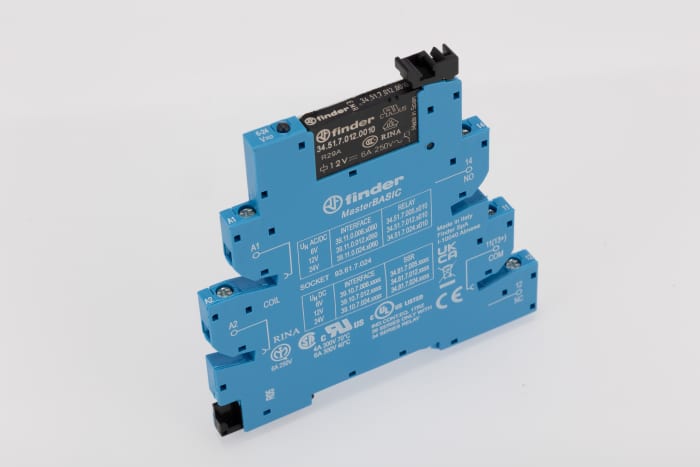

Finder 39 series Interface Relay, 12V AC/DC Coil Voltage, SPDT Contact Configuration - 39.11.0.012.0060

This interface relay is designed for use in various automation applications, featuring a compact width of 6.2mm and is compatible with DIN rail mounting. The relay operates effectively at 12V AC/DC and boasts a single pole double throw (SPDT) configuration. With a load current rating of 6/10A and robust construction, it is suitable for a wide range of industrial settings.

Features & Benefits

• Compact design allows for space-saving installations
• Supports dual screw head terminals for versatile connections
• Achieves high performance with a maximum switching voltage of 400V AC
• Integrated coil indication and protection enhance safety
• Designed for a wide operating temperature range of -40 to +70°C
• Features silver alloy contacts ensuring durability and reliability

Applications

• Ideal for use in control panels and electrical distribution
• Suitable for traffic light control systems
• Commonly utilised in bottling plants and packaging machinery
• Works effectively with hoists and cranes for industrial automation
• Integrates well with labelling machines and carousel warehouses

What are the input voltage specifications for this device?

The device operates within an input voltage range of 9.6V to 13.2V, making it effective for both AC and DC applications with a nominal voltage of 12V.

How does the relay ensure safety during operation?

The relay includes integral coil indication and a protection circuit, which help to identify potential issues promptly while safeguarding the system from overloads.

What kind of terminal connections does it support?

It supports secure connections through a dual screw head arrangement, which enhances the reliability of connections and ease of installation on DIN rail systems.

How does the relay perform under extreme temperatures?

Its robust construction allows it to function efficiently in a temperature range from -40 to +70°C, suitable for various industrial environments.

What is the expected life cycle of this relay?

The relay is designed for a mechanical life of up to 10 million cycles, with an electrical life of 60,000 cycles at rated load, ensuring long-lasting performance.
