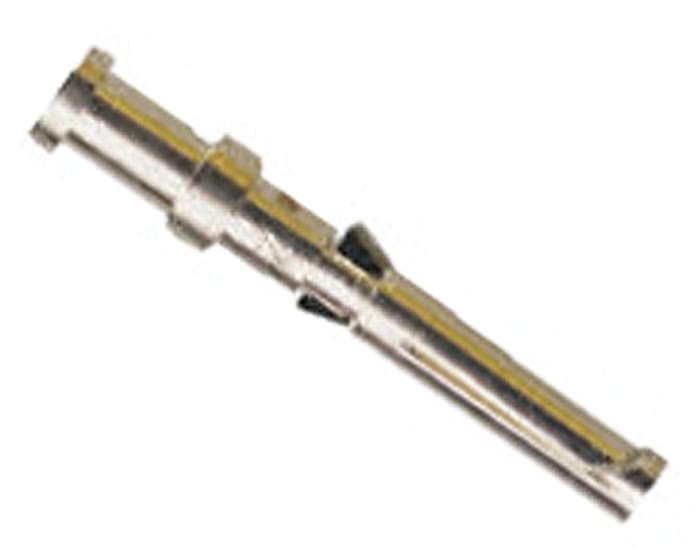

Silver plated socket contact,2.5sq.mm

Crimp Contacts, H-D and H-DD and Tooling

Machined precious-metal plated copper alloy crimp contacts snap into plug and socket inserts.Wire acceptance 0.5 to 2.5mm²

H-D & H-DD

Assembled connectors are type tested to 10A 250V a.c. and include the following features:

• High density contact loading gives more power and control connections in smaller shell sizes
• Machined contacts available to provide reliable interconnection and serviceability. Order contacts separately
• HD contacts are terminated simply and effectively using a quality 8 point indent crimp tool
• Coupled connectors have protection rating of IP65
• Plug and socket inserts are interchangeable and a separate earth connection is made through all inserts. The earth is connected to metal body shells

Notes

Alternative crimp tool see stock no. 266-6860. The posistioner used with this alternative crimp tool is listed in the table (stock no. 266-6882).

Standards

VDE 0110//72, 0110b, 79, VDE 0627//86

Approvals

SEV, UL, CSA

Warning

Connectors should not be coupled and decoupled under electrical load. Connectors of the same or different series being mounted side by side may be protected against incorrect mating by the use of coding options.
