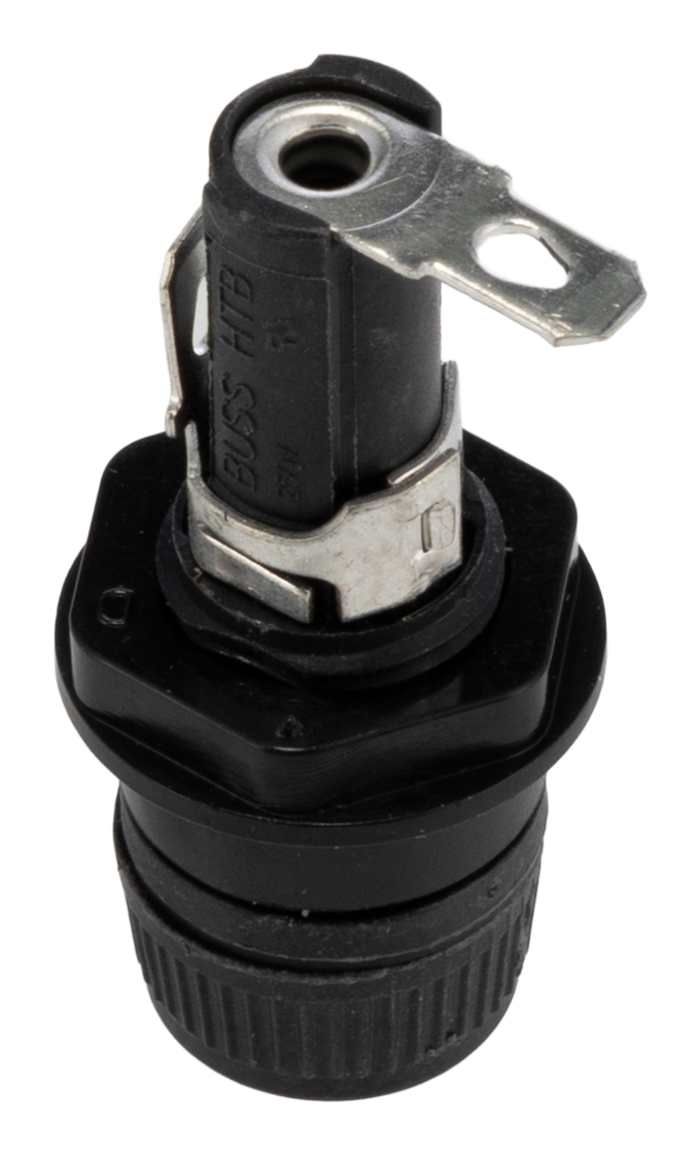

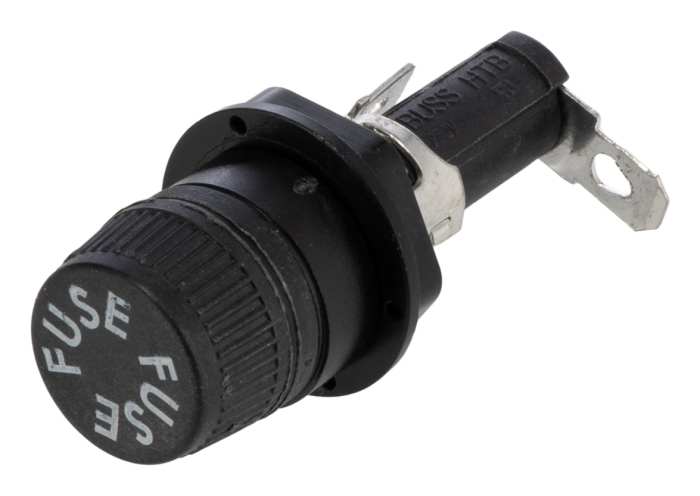

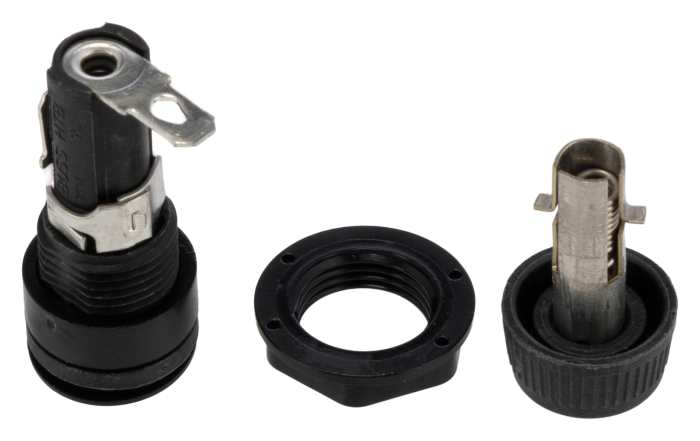

Eaton HTB Series Panel Mount Fuse Holder, 16A Current Rating, 250V AC Voltage Rating - HTB-44M-R

This panel mount fuse holder is designed to accommodate 5 x 20 mm fuses, offering reliable protection in electrical circuits. With a current rating of 16A and a voltage rating of 250V AC, it is well-suited for various applications in the automation and electrical industries. The holder is constructed from high-quality materials, ensuring durability during operation.

Features & Benefits

• Manual cap style provides easy access for fuse replacement
• Quick connect terminals facilitate straightforward installation
• Manufactured with tin-plated brass for optimal conductivity
• High-temperature thermoplastic ensures reliability in diverse environments

Applications

• Used in electrical panels for circuit protection
• Suitable for devices requiring a 16A fuse holder
• Ideal for demanding quick connect functionality
• Applied across various automation, electronic, and mechanical systems

What are the temperature limits for operating this component?

The component operates effectively within a temperature range of -55°C to +85°C, making it suitable for both extreme cold and heat environments.

Can this holder accommodate different fuse sizes?

Yes, it is designed to accept both 5 x 20 mm and 6.35mm x 31.75mm fuse sizes, providing flexibility for various usage scenarios.

Is this product resistant to environmental factors?

The holder is rated IP53, offering protection against dust and water splashes, making it suitable for less harsh environments.

How secure is the mounting of this fuse holder?

It can withstand up to 15 Lb-In torque when mounted, ensuring a stable and secure installation.

Notes

Eaton formerly known as Bussmann
