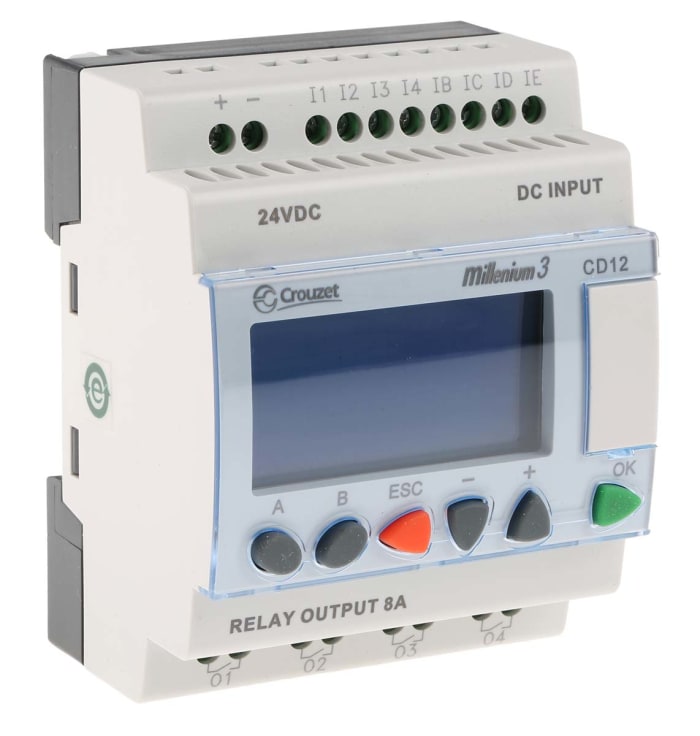

Logic Module M3 CUSTOM CD12 R 24VDC

Crouzet Operating Panel Interface

The Crouzet Millenium 3 series logic module is the latest generation of the Millenium compact version CD12 series with 8 digital (including 4 analogues) inputs and 4 relay outputs of 8A current rating. It has a compact design with 8digital inputs and 4 relay outputs for operating panel interface logic control. This panel is easy to program with an M3 Soft as it enables the controlling and monitoring of machines and automatic installations with up to 50 I/Os. It is positioned right at the heart of the automation range. The logic module has a supply voltage rating of 24VDC.
Crouzet Millenium 3
:
The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:
The Compact Controller has around twice the memory size
The Expandable Controller has around four times the memory size
10-bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)
18 character (formerly 12), 4 line display with scrolling text and bar graph functionality
Choice of ladder or function block programming

Features and Benefits

• Highly visible blue LCD with 4 lines of 18 characters and configurable backlighting
• Possible combination of 700 function blocks.
• 12 new smart function blocks suitable for application fields (temperature management, sun monitoring, etc.)
• Greater range of temperature resistance allows the Millennium 3 to be used in more severe conditions
• Operating temperature ranges between -20°C and 70°C

Applications

• Automatic barriers
• Automatic doors
• Turnstiles
• Sectional doors and disabled access ramps

Certifications

• UL listed
• CSA approved
• CE
• GL
• IP40 rated
• IP20 rated
