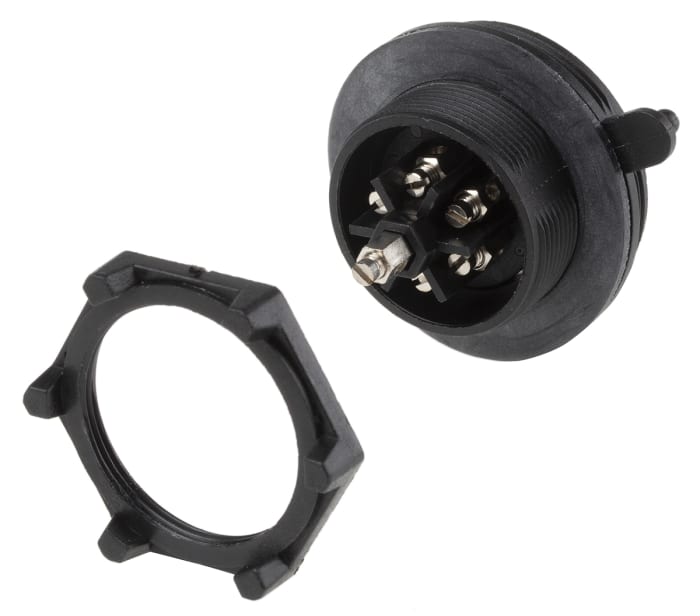

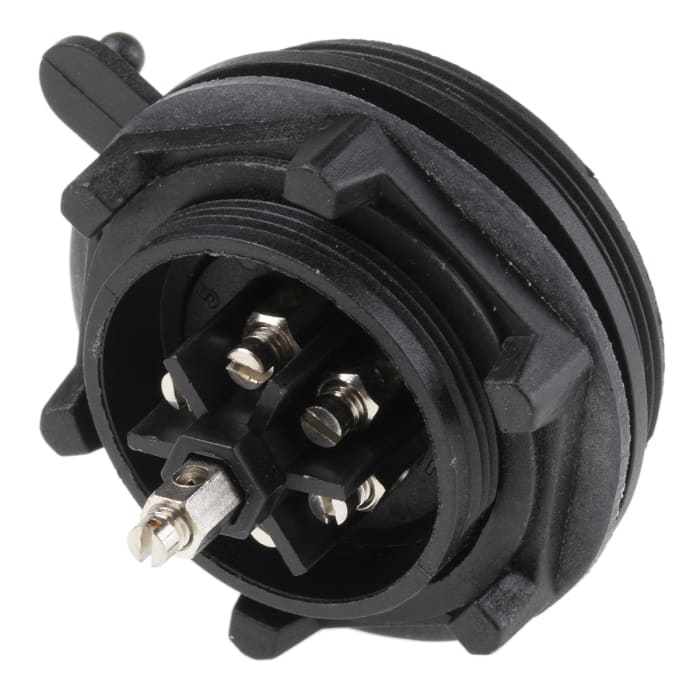

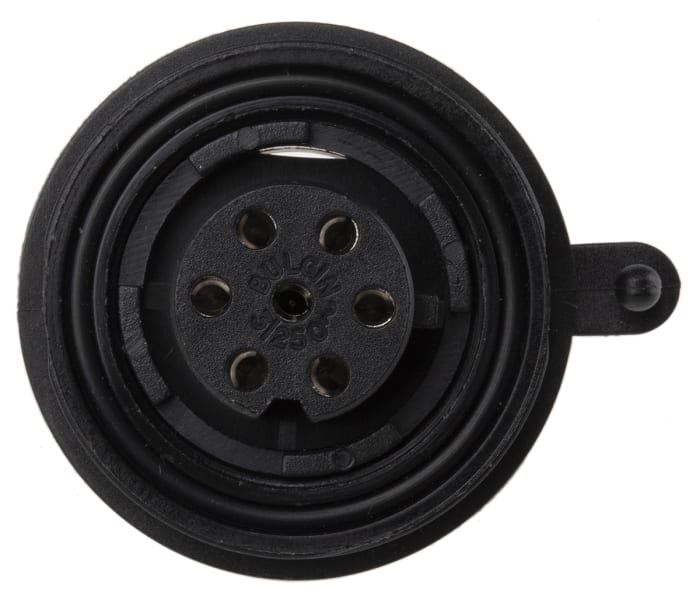

IP68 7 way jam nut chassis socket,3A

Bulgin Circular Connector

The Bulgin Buccaneer series 7-poles female circular in-line cable connector has a socket type connection. This connector has a voltage rating of 277VAC/DC and current rating is up to 3A per contact. This connector is ideal for use in challenging conditions. The connector shell is made from glass-filled polyamide with gold-plated copper alloy contacts. The connectors also feature a positive locking mating system that means the connector cannot be mismatched.
Environment
The standard series of buccaneer connectors are protected to IP68 when mated. This means they are dust-tight and resistant to particle ingresses such as dust and sand. They are also waterproof, meaning they are protected from liquid ingress up to the point of submersion for a limited time.
Frequently asked questions (FAQs)
Q: Are there accessories available for this connector?
A: There are connector caps available for standard buccaneer connectors, which maintain the IP68 sealing when mated pairs are uncoupled. The cap can also be used as a tool to aid the removal and refitting of inserts during assembly.
Q: How durable is the connector?
A: The standard buccaneer series of power connectors feature glass filled polyamide moulded housing that is resistant to dust, oil and saltwater.
Q: What are the mating requirements of this connector?
A: The buccaneer standard series in-line connectors mate with corresponding cable connectors for cable to cable connections, and with panel mount connectors.
Q: Are contacts supplied with this connector?
A: Flange connectors with 2 to 9 poles are supplied with contacts. The 12 to 25 pole connectors are supplied without contacts.

Features and Benefits

• Screw termination
• Straight body orientation
• Easy assembly, no special tools required
• Insulation resistance is greater than 104Mohm
• Operation temperature ranges between -20°C and 70°C
• Positive locking keyways
• Shell size is 38mm
• Single-hole fixing
• Unshielded
• Water and dustproof

Applications

• Electrical equipment
• Industrial automation

Certifications

• CSA certified
• IP68 rated
• UL approved
• VDE approved

Approvals

CSA; UL; VDE
