Light Pipe,RA,2 Stat,10mm Elev, 20mm Pro

Bivar RLP2 Series Right Angle LED Light Pipes

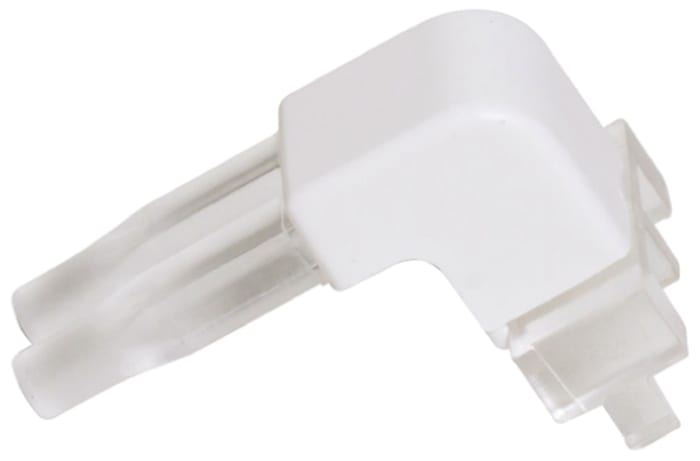

These RLP2 series right angle, double station light pipes, from Bivar, feature an outer protective white housing and simple snap-fit PCB mounting. RLP2 series light pipes are ideal for redirecting the light output from 2 LEDs to another location, as well as isolating the PCB from potential contact and hence from accidental ESD damage.

• Snap-in PCB mounting, recommended PCB thickness: 0.062”
• ESD protection
• Light pipe housing
• Uniform diffused light output
• 2.8mm diameter output lens

LED Light Pipes, Bivar

Bivar's range of LED light pipes include both rigid and flexible types. Their light pipes enable the user to move light from the LED source to a desired destination over a range of distances up to 100m. Bivar's LED light pipes are ideal for design flexibility.

Notes

Elevation of the centre of output lens above the PCB: RLP2-200 = 5mm, RLP2-400 = 10mm and RLP2-600 = 15mm.
