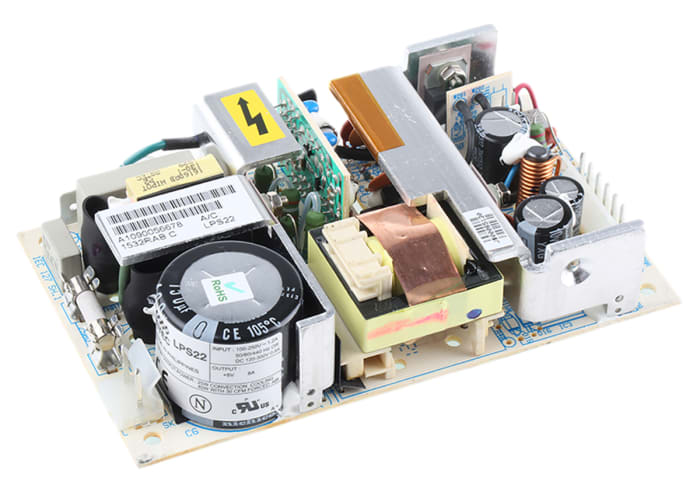

Artesyn Embedded Technologies NPS22-M

Switch Mode Medical Approved Single Output AC/DC Power Supply - NPS-M Series

Switch mode single output AC/DC embedded power supplies with a low safety ground leakage current and medical and ITE approval. These switch mode AC/DC power supplies have a universal AC input, adjustable output voltage, high efficiency, a built in EMI filter and dual AC fuses . The footprint for these AC/DC power supplies is 2" x 4" with a height of less than 1U. Suitable applications for these embedded AC/DC power supplies include information technology equipment (ITE) and light industrial systems, as well as for equipment intended for non-patient contact and non-patient critical use in low power medical, dental and laboratory applications.

• Worldwide IT equipment (ITE) approval
• Class I approved (NPS60-M is UL Class I approved), Class II approved (with Class A EMI)
• Universal AC input
• Adjustable output voltage
• High efficiency
• Overload and overvoltage protection
• Remote sensing
• Built in EMI filter (CISPR 22 Class B)
• Less than 300 mW no load power consumption
• Safety ground leakage current of 275ua @ 50/60 Hz; 264 VAC input
• EMI compliance: FCC Class B conducted; CISPR 22 Class B conducted; EN55022 Class B conducted, VDE0878PT3 Class B conducted
• Harmonic Current compliance: EN61000-3-2

Notes

Mating connectors for AC/DC input connectors available
Derate output at 2.5% per degree from 50° to 80°C

Standards

TUV: 60950, 60601-1, UL: 60950, 60601-1, CSA: 60950, 60601-1, NEMKO: 60950, 60601-1, CB: Certificate and report, CE: Mark (LVD), CQC: Mark

Approvals

TUV, UL (except NPS60-M models), CB
