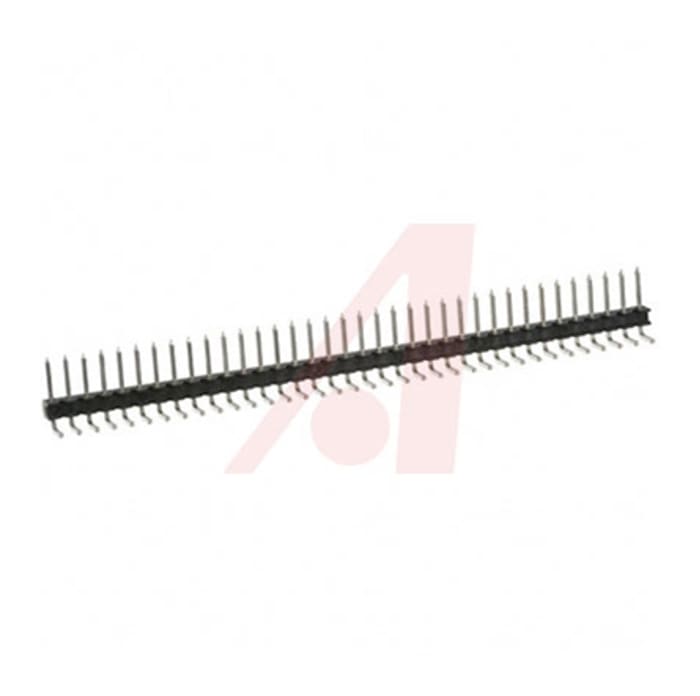

3M Right Angle Pin Header, 36 Way, 1 Row - 929 Series - 929835-01-36-RK

This pin-strip header from 3M is a simple interface for connecting electrical devices to your printed circuit board. It features a single row of contact pins on a high-temperature PCT (polycyclohexylenedimethylene terephthalate) thermoplastic base, so you can fuse it securely and safely with lead-free soldering. The header has a UL94 V-0 (Underwriters Laboratories) flammability rating, certifying the unit will burn for no more than ten seconds, making it a fire-safe choice. As it's unshrouded, it takes up minimal space on your PCB.

• Right-angle body orientation for versatile use and to reduce strain on cable connections Header houses 36 contacts in one row, so it's stackable and simple to install Tin contact plating to prevent build-ups of rust and corrosion Conforms to Restriction of Hazardous Substances (RoHS) directive, indicating it contains no more than minimal amounts of any hazardous substances

Applications

• Industrial alarms Sound-mixing equipment Humidity controls Compressors

What length are the pins on this PCB header?

This PCB header has 5.97mm mating pins to give a deep and reliably secure connection.

969 Series Pin Strip Headers

The 929 Series of 3M™ Pin Stripe Headers and sockets will provide high reliability and durability. All models are stackable
and will include solder stand-offs to facilitate production wave soldering.
All headers have an insulation material of Glass Filled Polyester (PBT) or High Temperature PCT and come with a
current rating of 2.5A, The Sockets will come with a current rating of 1A

• Copper Alloy Contact
• Black in Colour
• Headers: 36 Way
• Sockets: 2 Way to 36 Way

2.54mm 3M Range

Warning

Flammability: UL 94V-0
