Telegartner J01001B0615 BNC-коннектор
Техническая документация
Характеристики
Brand
TelegartnerCoaxial Connector Type
BNC Connector
Gender
Female
Mounting Type
Panel Mount
Impedance
50Ω
Termination Method
Solder
Body Orientation
Straight
Bulkhead
Yes
Operating Frequency
0 to 4GHz
Minimum Operating Temperature
-65°C
Body Plating
Nickel
Maximum Operating Temperature
+165°C
Contact Material
Beryllium Copper
Contact Plating
Silver
Страна происхождения
Germany
Информация о товаре

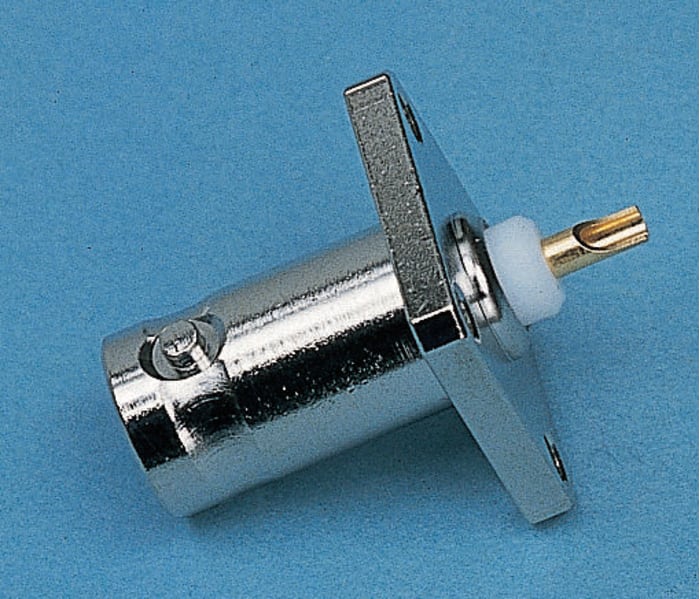

Telegärtner 50 Ohm BNC RF Coaxial Bulkhead Socket Connectors
50 Ohm BNC RF coaxial bulkhead socket connectors with a bayonet coupling and solder termination. These 50 Ohm BNC RF coax bulkhead jack connectors have a PTFE insulator, silver plated inner conductor, nickel plated body and gold plated centre contact.
Telegärtner BNC RF Connectors
тг 1 327,59
тг 1 327,59 Each (ex VAT)
1
тг 1 327,59
тг 1 327,59 Each (ex VAT)
1
Информация о наличии не успела загрузиться
Пожалуйста, перезагрузите страницу (ctrl+F5)
| Количество | Цена единицы |
|---|---|
| 1 - 24 | тг 1 327,59 |
| 25 - 49 | тг 1 215,84 |
| 50 - 99 | тг 1 148,79 |
| 100 - 249 | тг 1 090,68 |
| 250+ | тг 1 037,04 |
