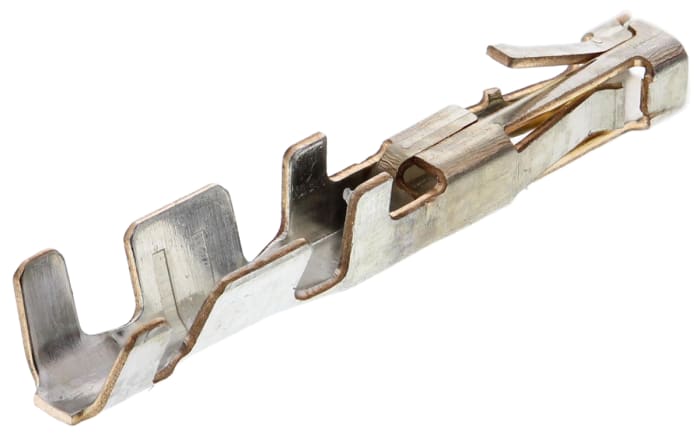

TE Connectivity 794610-1 Контакт обжимного типа

Код товара RS: 495-9653Бренд: TE ConnectivityПарт-номер производителя: 794610-1Distrelec Article No.: 30012036
brand-logo

Техническая документация

Характеристики

Тип соединителя

Гнездо

Для использования с

Корпус микроразъема MATE-N-LOK

Серия

Micro MATE-N-LOK

Minimum Wire Size mm²

0.2mm²

Метод оконцовки

Обжим

Maximum Wire Size mm²

0.5mm²

Minimum Wire Size AWG

24AWG

Покрытие контактов

Олово

Maximum Wire Size AWG

20AWG

Материал контактов

Фосфористая бронза

Минимальная рабочая температура

-40°C

Максимальная рабочая температура

+105°C

Страна происхождения

Mexico

Информация о товаре

TE Connectivity Micro MATE-N-LOK Crimp Contacts

Micro MATE-N-LOK crimp snap-in pin and receptacle crimp contacts for use in the Micro MATE-N-LOK connector housings. These Micro MATE-N-LOK crimp contacts have a dual beam contact design for a reliable electrical connection. A locking lance mechanism ensures that these crimp contacts are held securely in the connector housing. These Micro MATE-N-LOK crimp contacts are available with a tin or gold plating and can terminate wire size ranges from 0.05 mm² to 0.9 mm² AWG with insulation diameters up to 1.52 mm

TE Connectivity Micro MATE-N-LOK 3mm Connector System

The Micro MATE-N-LOK 3mm connector system is a wire-to-wire and wire-to-board connector system with contacts on a 3mm centreline and a maximum current rating of 5A. This connector system consists of plug and receptacle for wire-to-wire and wire to panel configurations and PCB headers for wire to board connections. When combined these connectors can be used in a wide range of industrial and consumer applications. The Micro MATE-N-LOK 3 mm connector range includes versions with a low profile 4.7 mm mating height making them ideal for use in LED lighting applications

Вас может заинтересовать

Информация о наличии не успела загрузиться

Пожалуйста, перезагрузите страницу (ctrl+F5)

Информация о наличии не успела загрузиться

тг 2 235,00

тг 22,35 Each (In a Pack of 100) (ex VAT)

TE Connectivity 794610-1 Контакт обжимного типа
Select packaging type

тг 2 235,00

тг 22,35 Each (In a Pack of 100) (ex VAT)

TE Connectivity 794610-1 Контакт обжимного типа
Информация о наличии не успела загрузиться
Select packaging type

Купить большой партией

КоличествоЦена единицыPer Упаковка
100 - 900тг 22,35тг 2 235,00
1000 - 2900тг 17,88тг 1 788,00
3000 - 7400тг 17,88тг 1 788,00
7500 - 14900тг 17,88тг 1 788,00
15000+тг 13,41тг 1 341,00
