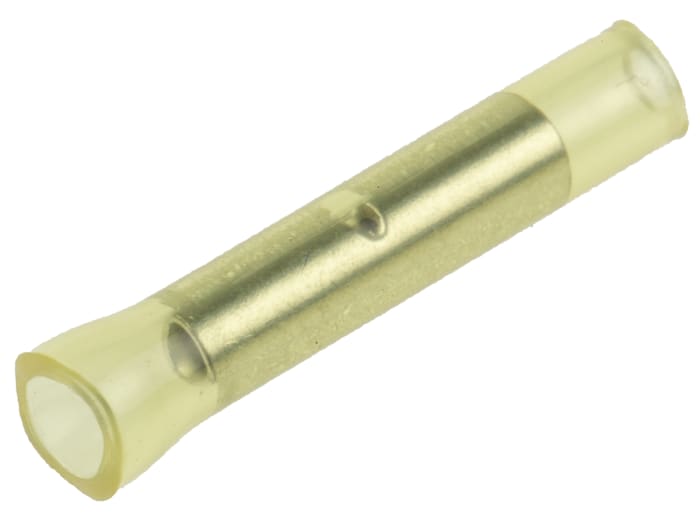

TE Connectivity 2-323994-2 Стыковой соединитель для проводов
Техническая документация
Характеристики
Brand
TE ConnectivityТип соединения
Стык
Размер провода
26 → 22 AWG
Габаритная длина
22.61мм
Диаметр
2.08мм
Изоляция
С изоляцией
Цвет
Желтый
Изоляционный материал
Нейлон
Серия
PIDG
Материал контактов
Медь
Покрытие контактов
Олово
Страна происхождения
United States
Информация о товаре
TE Connectivity PIDG Closed Barrel Butt Splice
PIDG (Pre-Insulated Diamond Grip) wire crimp splice terminals designed for uniform reliability in the most difficult circuit environments. These PIDG wire splice terminals consist of a precision-formed high conductivity copper body and barrel. The wire barrel is surrounded with both a copper and nylon colour coded sleeve. The copper sleeve surrounding the barrel provides improved wire insulation support after crimping allowing the wire to bend without fraying the insulation or breaking the conductor. The nylon sleeves are colour coded according to wire-size to assist with identification. Inside the PIDG splice terminal wire barrel are serrations which provide maximum contact and tensile strength after crimping. The construction of these PIDG terminals and the use of specialised tool dies allows for uniform insulation thickness under crimping pressure. This pressure is then transmitted evenly to the centre of the crimping area to produce a uniform and reliable crimp. Available with various wire and barrel sizes, these PIDG splice terminals offer a versatile solution to a wide range of wiring applications
Approvals
UL recognised (Approvals only apply to the packs of 100, and only for those terminals marked with an asterisk).
TE Connectivity PIDG Terminals
Информация о наличии не успела загрузиться
Пожалуйста, перезагрузите страницу (ctrl+F5)
тг 15 645,00
тг 312,90 Each (In a Pack of 50) (ex VAT)
Стандартная упаковка
50
тг 15 645,00
тг 312,90 Each (In a Pack of 50) (ex VAT)
Стандартная упаковка
50
Купить большой партией
| Количество | Цена единицы | Per Упаковка |
|---|---|---|
| 50 - 200 | тг 312,90 | тг 15 645,00 |
| 250 - 1200 | тг 263,73 | тг 13 186,50 |
| 1250 - 2450 | тг 232,44 | тг 11 622,00 |
| 2500 - 4950 | тг 223,50 | тг 11 175,00 |
| 5000+ | тг 214,56 | тг 10 728,00 |
