RS PRO Монтажный провод
Техническая документация
Характеристики
Brand
RS ProCross Sectional Area
0.2 mm²
Sheath Colour
Black
American Wire Gauge
24 AWG
Cable Shape
Single Core
Core Strands
7/0.2 mm
Length
100m
Insulation material
PVC
Voltage Rating
1 kV
Outer Diameter
1.2mm
Maximum Operating Temperature
+85°C
Minimum Operating Temperature
-15°C
Conductor Material
Tinned Copper
Wire Style
BS4808
Standards Met
Def Stan 61-12 Part 6
Insulation Wall Thickness
0.3mm
Size of Strands
0.2 mm
Number of Strands
7
Страна происхождения
China
Информация о товаре

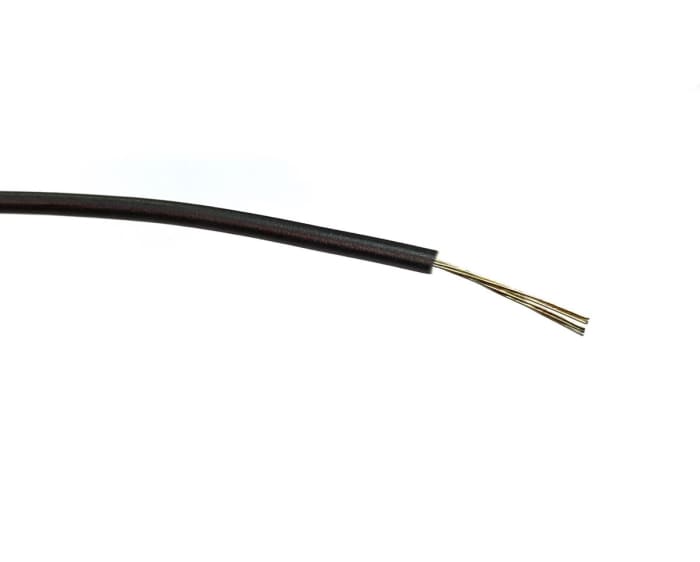

RS Pro Hook Up Wire
Brought to you by RS Pro, these wires are intended for internal wiring applications in electrical and electronic equipment, they meet the requirements of IEC 189-3. The high-quality inner conductor defines the flexibility and conductivity of the wire. Tin used in conjunction with copper boosts the copper’s properties and helps the wire to last much longer and counter acts against oxidation. They are simply more flexible and resistant to bending. At the same time, a particular cross-section of stranded conductor gives it essentially the same resistance characteristics as a single-strand conductor, but with added flexibility. All models are highly reliable and excellent quality.
Warning
Bi-coloured yellow/green is not intended for earth wires.
тг 4 416,36
тг 4 416,36 1 Reel of 100 Metres (ex VAT)
1
тг 4 416,36
тг 4 416,36 1 Reel of 100 Metres (ex VAT)
1
Информация о наличии не успела загрузиться
Пожалуйста, перезагрузите страницу (ctrl+F5)
| Количество | Цена единицы |
|---|---|
| 1 - 24 | тг 4 416,36 |
| 25 - 49 | тг 4 228,62 |
| 50+ | тг 4 040,88 |
